ALLIED TELESIS
AT-GS950/24-10 Allied Telesis AT-GS950/24 24 Port Gigabit WebSmart Switch
Mfg Part Number: AT-GS950/24-10 , Item #: 362316

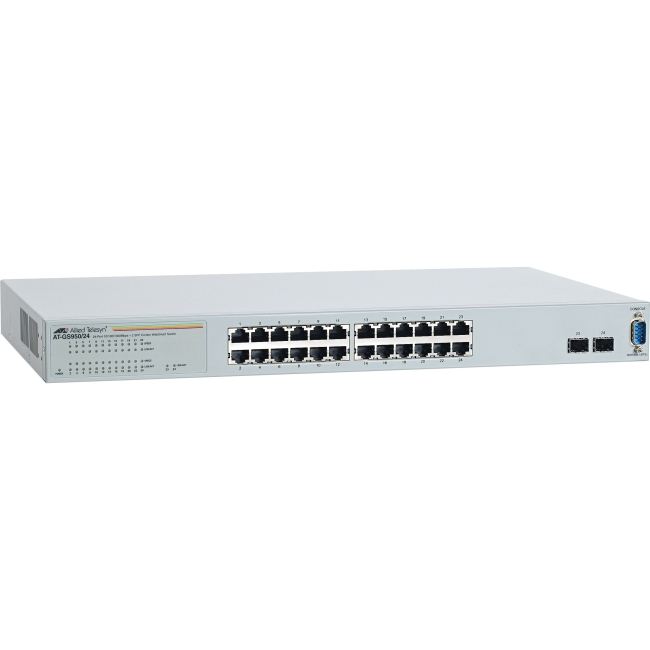

Image may not reflect the actual item.
Price: $511.50
Quantity:
In Stock: 2
Last Updated: Dec 15, 2025
No Sales Tax except these states
, PO and Wire.
Allied Telesyn's AT-GS950/24 WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network.
Main Specification
| General Information | |
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-GS950/24-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Brand Name | Allied Telesis |
| Product Model | AT-GS950/24 |
| Product Name | AT-GS950/24 24 Port Gigabit WebSmart Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Management |
|
| Security Features |
|
| Power Description | |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 10.1" |
| Weight (Approximate) | 7.14 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | IEEE:
Electrical/Mechanical Approvals:
|
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
| Device Type | Switch |
| Enclosure Type | External |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Localization | United States |
| Memory | |
| RAM | 512 KB |
| Networking | |
| Ports Qty | 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | HTTP |
| Connectivity Technology | Wired |
| Switching Protocol | Ethernet |
| MAC Address Table Size | 8K entries |
| Features | Flow control, trunking, auto-uplink (auto MDI/MDI-X), port mirroring |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x |
| Expansion / Connectivity | |
| Expansion Slots Total (Free) | 2 ( 2 ) x SFP (mini-GBIC) |
| Interfaces | 16 x network - Ethernet
10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management - RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Compliant Standards | CE, FCC Class A certified, TUV, C-Tick, EN 60950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
