MIDDLE ATLANTIC

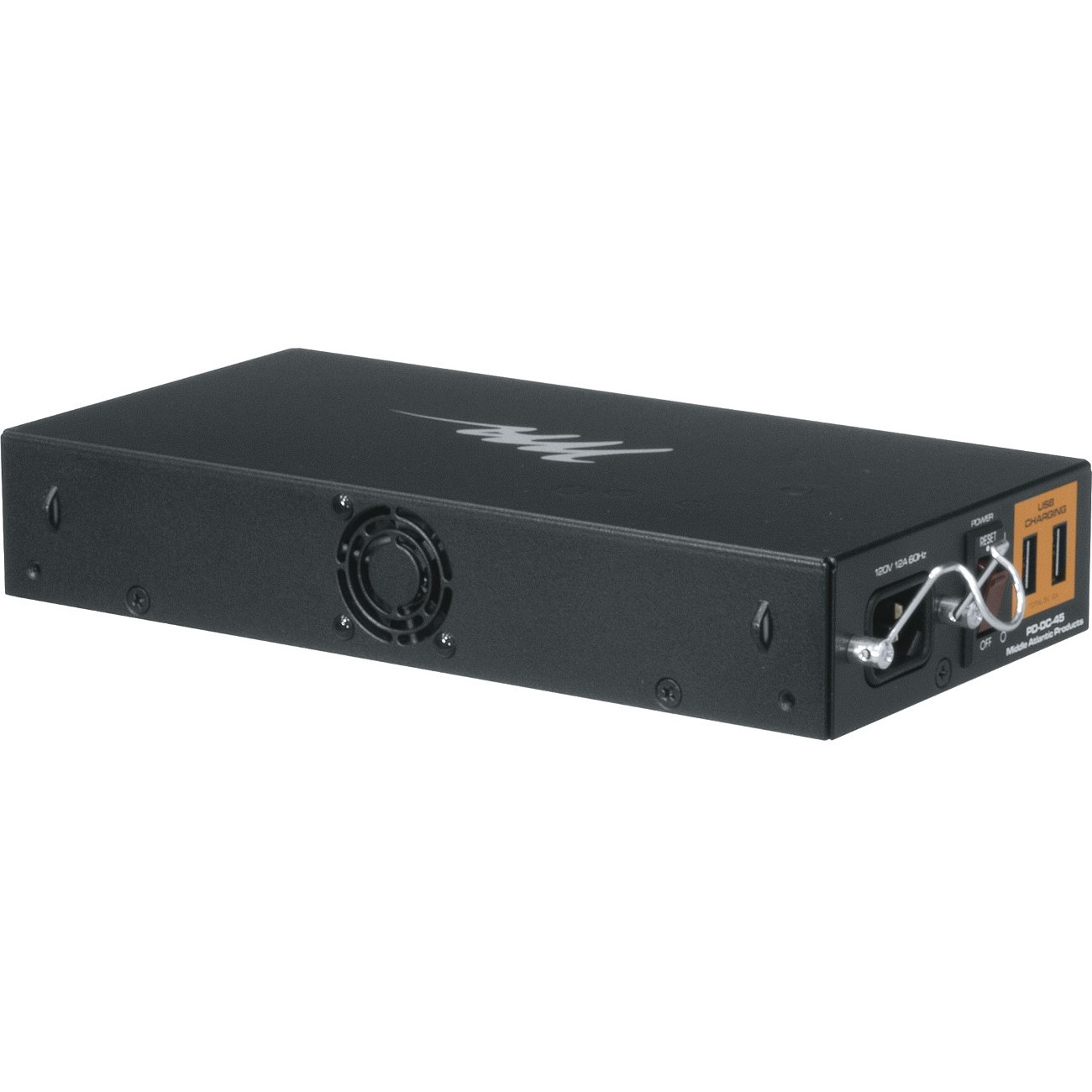

MIDDLE ATLANTIC PD-DC-45 DC PWR DIST,45W COMPACT
Mfg Part Number: PD-DC-45 , Item #: 3576368
, PO and Wire.

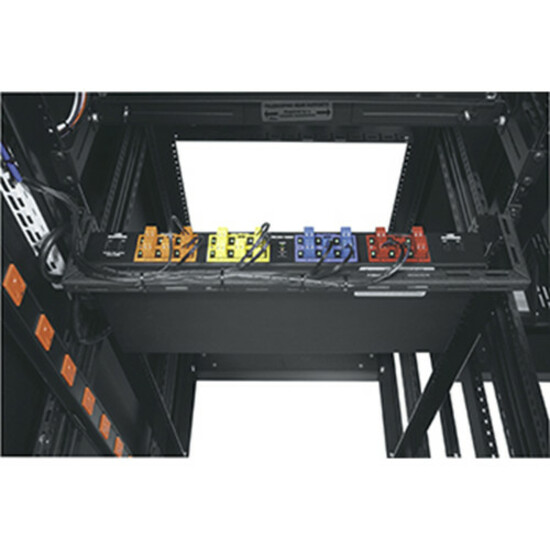

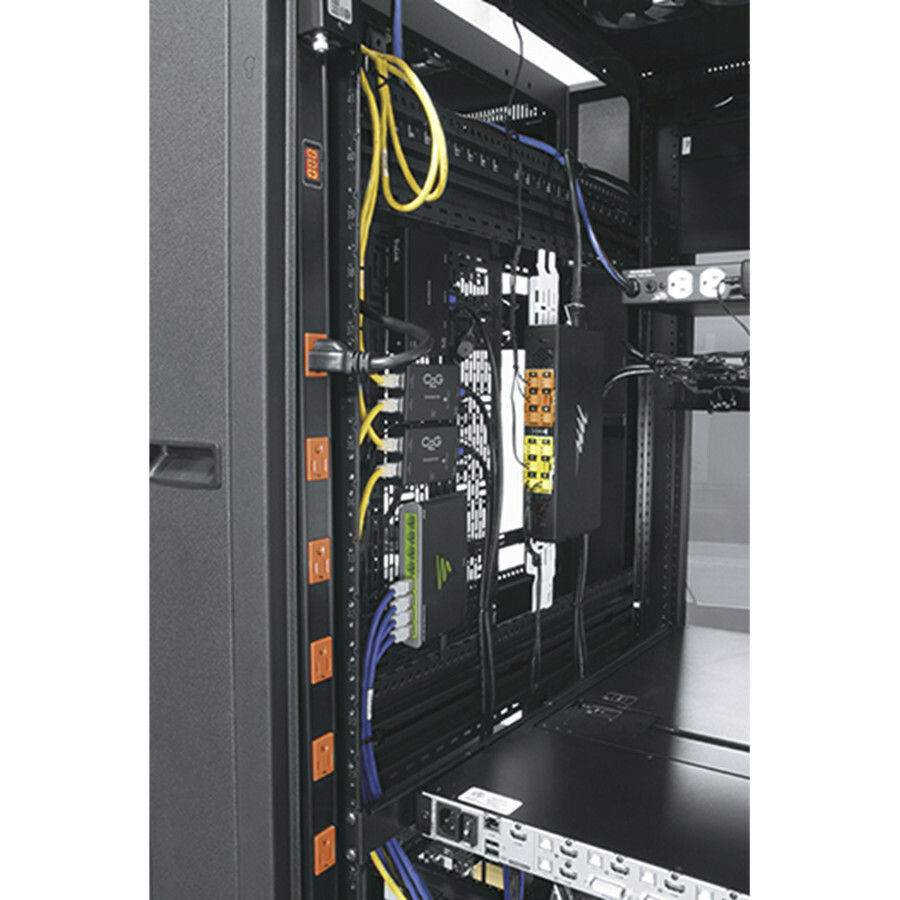

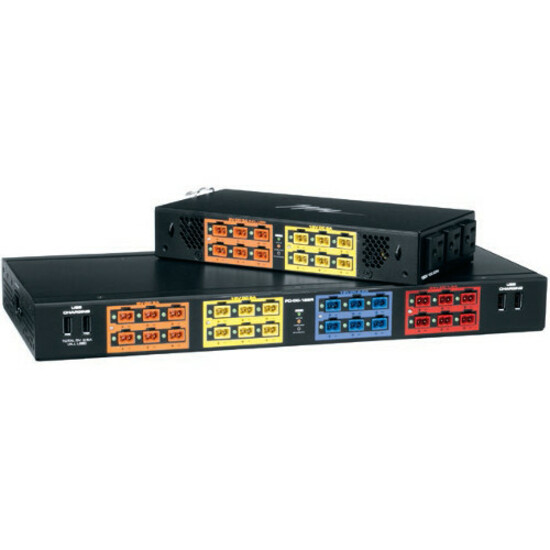

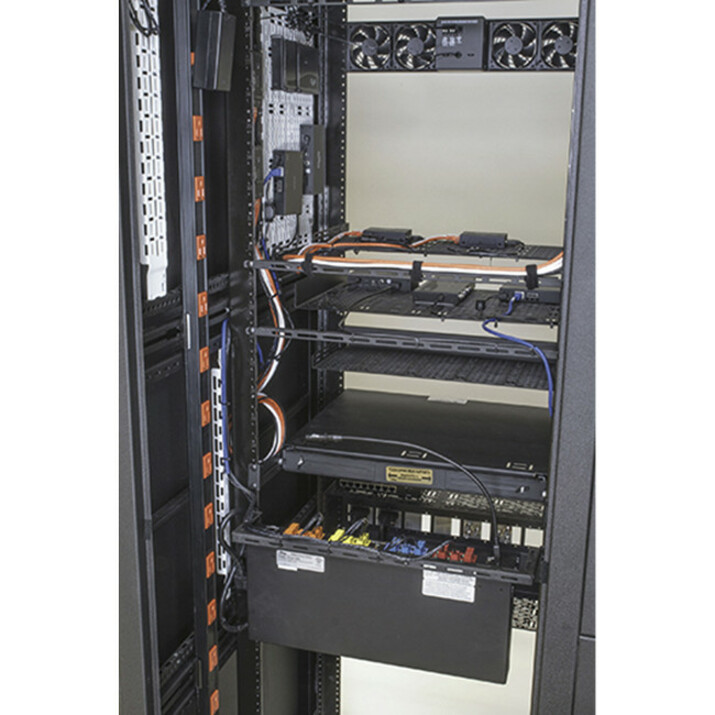

Eliminate wall warts and other power clutter in your AV, networking or security installations with DC Power Distribution, the perfect power solution for build areas with a multitude of devices in 5V and 12V voltages. With ultimate flexibility built in, these DC Power Distribution solutions provide support and availability for multiple industry standard voltages as well as mounting options allowing the units to be placed within a typical rack unit, small enclosure or wall box. This space-saving solution is intuitive to install with a color-coded screw terminal connector platform that manages the multiple voltage options and easy to identify polarity labeling. Simply streamline the install by allowing leads to be trimmed to length and by reducing design modifications contributing to additional labor costs with DC Power Distribution.
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PD-DC-45 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Middle Atlantic |
| Product Name | Multi-Mount 17-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | USB |
| Receptacle Type | Screw Terminal |
| Receptacle Type | NEMA 5-15R/20R |
| Receptacle Detail | 3 x NEMA 5-15R/20R |
| Receptacle Detail | 2 x USB |
| Receptacle Detail | 12 x Screw Terminal |
| Protection Type | Overcurrent Protection |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 132 V AC |
| Output Voltage | 5 V DC |
| Output Voltage | 120 V AC |
| Output Voltage | 12 V DC |
| Power Rating (Watt) | 45 W |
| Input Current | 12 A |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Height | 1.7" |
| Width | 9.9" |
| Depth | 5" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
