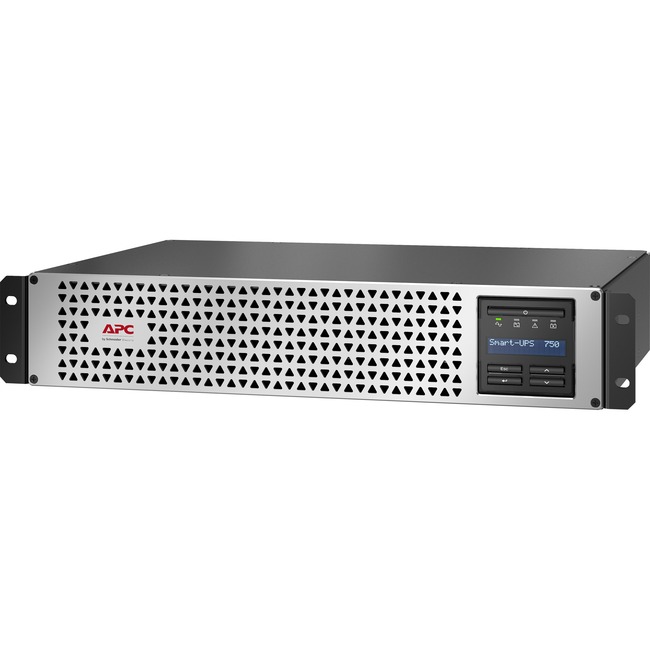

APC SMTL750RM2UC SMART-UPS LI-ION SHORT DEPTH 750VA 120V WITH SMARTCONNECT
Mfg Part Number: SMTL750RM2UC , Item #: 3519270
, PO and Wire.
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMTL750RM2UC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMTL750RM2UC |
| Product Name | Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Overload Protection | Yes |
| Cord Length | 8 ft |
| Transfer Time | 10 ms |
| Application/Usage | Switch |
| Application/Usage | Security System |
| Application/Usage | Server |
| Application/Usage | Network Hub |
| Application/Usage | Router |
| Application/Usage | Network Device |
| Application/Usage | Communication System |
| Application/Usage | POS Terminal |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Management | |
| Network Management | SmartConnect |
| Alarm | Configurable Delay |
| Alarm | On Battery |
| Alarm | Low Battery |
| Controls/Indicators | |
| Status Indicators | LED status indicators: Quickly understand unit and power status with visual indicators. |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 5.70 Minute |
| Backup/Run Time (Half Load) | 13.80 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 25000 ft |
| Storage Temperature | -40°F (-40°C) - 95°F (35°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 41 dB(A) |
| Thermal Dissipation | 20.51 W |
| Physical Characteristics | |
| Product Color | Silver |
| Product Color | Black |
| Height | 3.4" |
| Width | 17.2" |
| Depth | 12.5" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 34 lb |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
