VERTIV

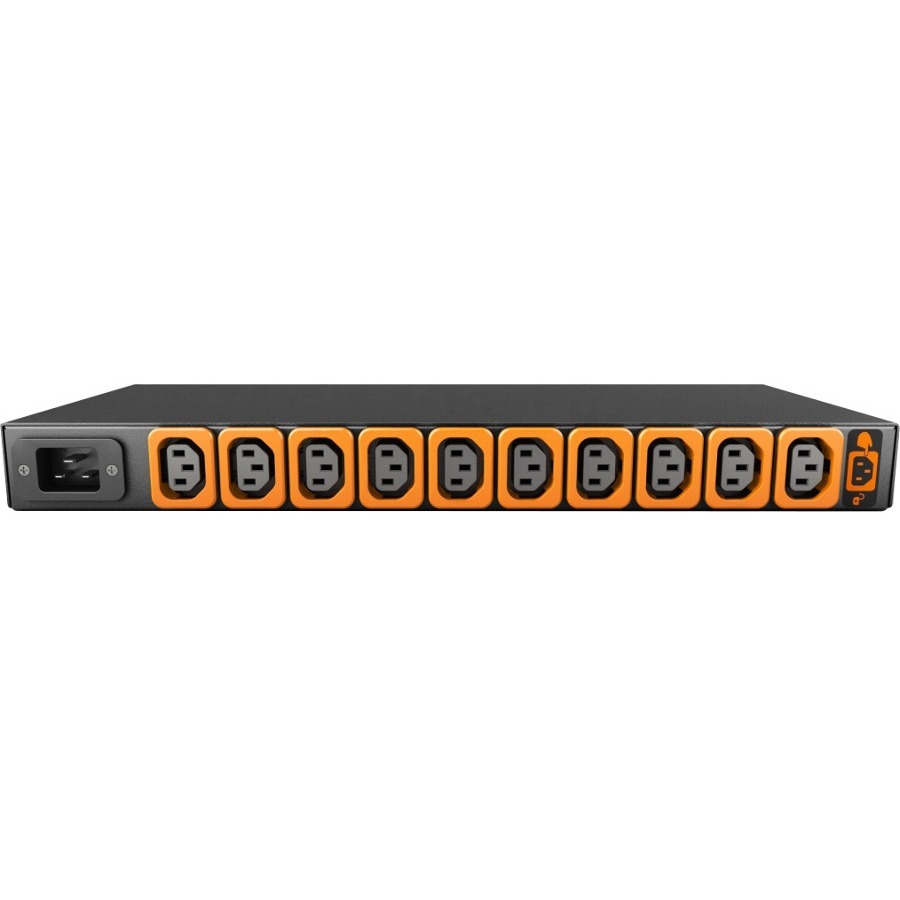

VERTIV UI10016L MU01D1R0-10L137-2C20A9H00-S GU 16A 20A 100-120 OR 208-240V C20
Mfg Part Number: UI10016L , Item #: 3110812
Image may not reflect the actual item.
Price: $399.16
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 23, 2025
No Sales Tax except these states
, PO and Wire.
Upgradeable Metered rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet while delivering a view of real-time view of power usage from a local LED display.
Benefits
- With the Geist Upgradeable hot-swap technology, users may easily transform metered rPDUs to monitored rPDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.
- Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | UI10016L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | MU01D1R0-10L137-2C20A9H00-S |
| Product Name | rPDU MU01D1R0-10L137-2C20A9H00-S 10-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Receptacle Detail | 10 x U-Lock IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Power Rating (Watt) | 3600 W |
| Input Current | 20 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Mount Type | Cabinet-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17" |
| Depth | 8.5" |
| Miscellaneous | |
| Country of Origin | United States |
