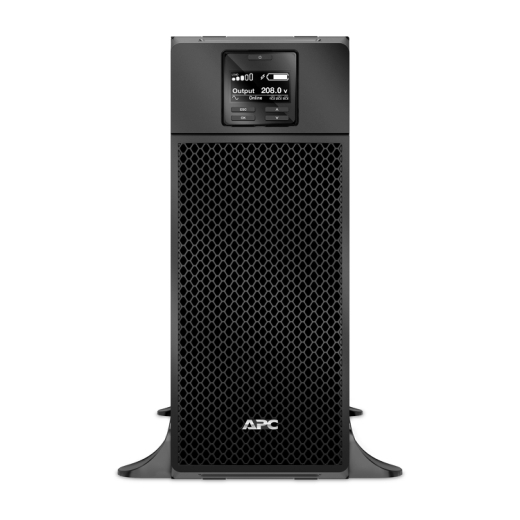

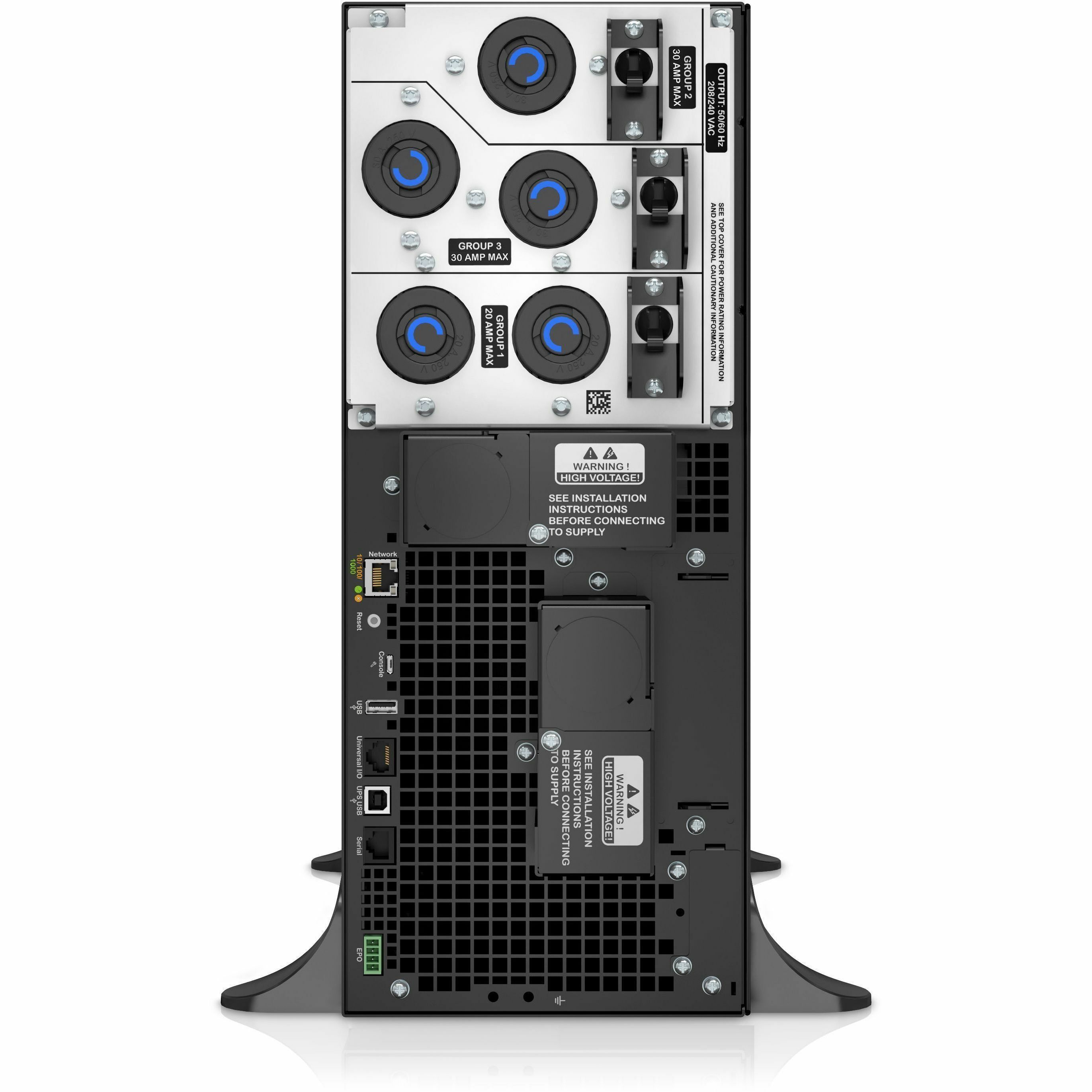

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 3x NEMA L6-30R and 2x L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT6KXLTUS |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SRT6KXLTUS |
| Product Name | Smart-UPS SRT6KXLTUS 6KVA Tower/Rack Convertible UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G) |
| Receptacle Detail | 3 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 5 |
| Phase | Single Phase |
| Application/Usage | Security System |
| Application/Usage | Network Hub |
| Application/Usage | Data Center |
| Application/Usage | Router |
| Application/Usage | Network Device |
| Application/Usage | Computer |
| Application/Usage | Server |
| Application/Usage | Network Switch |
| Power Description | |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (Watt) | 6000 W |
| Input Voltage | 208 V AC |
| Input Voltage | 240 V AC |
| Input Voltage Range | 160 V AC - 275 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 240 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17" |
| Width | 6.9" |
| Depth | 28.3" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Mounting Location | Vertical |
| Weight (Approximate) | 134.99 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|FCC part 15 class A|NOM|TAA compliance|UL 1778 |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT6KXLTUS_ROHS_DECLARATION&p_FileName=SRT6KXLTUSKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500734&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500734&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
