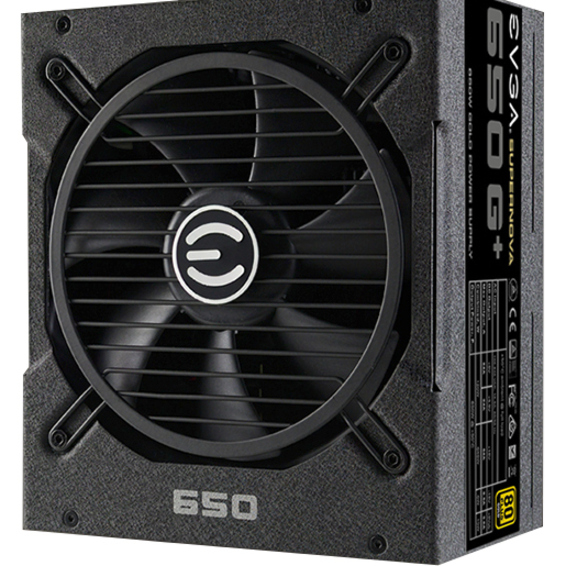

EVGA 120-GP-0650-X1 650W G1+ PSU SUPERNOVA

The EVGA SuperNOVA G+ Power Supplies have arrived. Launched in 2013, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years, it's only fitting that these are due for an upgrade. Enter the G+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating.

Compared to the EVGA SuperNOVA G1 power supplies, the G+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluid-dynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G+ power supplies set the new Gold standard for performance and value.

General Information
Manufacturer	EVGA Corporation
Manufacturer Part Number	120GP0650X1
Manufacturer Website Address	http://www.evga.com
Brand Name	EVGA
Product Line	SuperNOVA
Product Name	SuperNOVA 650W Power Supply
Product Type	Power Supply
Technical Information
Specification Compliance	ATX12V/EPS12V
Efficiency	90%
Number of Fans	1
Modular	Yes
Power Description
Number of +12V Rails	1
Input Voltage	230 V AC
Input Voltage	120 V AC
Output Voltage	5 V DC
Output Voltage	12 V DC
Output Voltage	3.3 V DC
Output Voltage	5 V
Output Voltage Detail	3.3 V DC @ 24 A
Output Voltage Detail	5 V @ 3 A
Output Voltage Detail	5 V DC @ 24 A
Output Voltage Detail	12 V DC @ 54 A
Output Voltage Detail	12 V DC @ 500 mA
Output Current	3 A
Output Current	500 mA
Output Current	24 A
Output Current	54 A
Output Power	650 W
Physical Characteristics
Form Factor	Internal
Height	3.3"
Width	5.9"
Depth	6.7"
Weight (Approximate)	7 lb
Miscellaneous
Certifications & Standards	cTUVus TÜV
Country of Origin	China
Environmentally Friendly	Yes
Energy Efficiency Certification	80 Plus Gold
Energy Efficiency Compliance	Energy-related Products Directive Lot 6 (ErP Lot 6)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	10 Year

Specifications

• Mfr Part Number: 120-GP-0650-X1

• Features:
  • 100% Japanese Capacitors ensure long-term reliability
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Fully Modular to reduce clutter and improve airflow
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

• MTBF: 100,000 hours
• Fan: 1x 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 54A, +5VSB @ 3.0A, -12V @ 0.5A

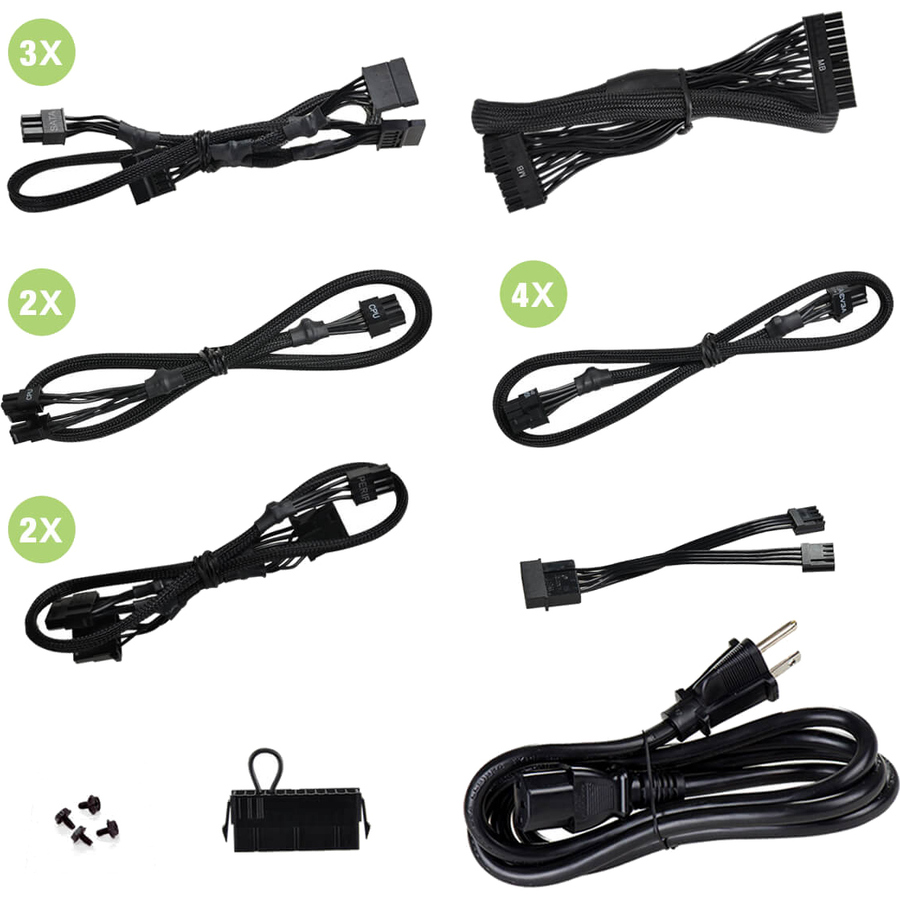

• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connectors, 4x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 6x 4pin Peripheral Connectors, 2x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 170.0 x 85.0 mm
• Weight: 7.0 lbs
