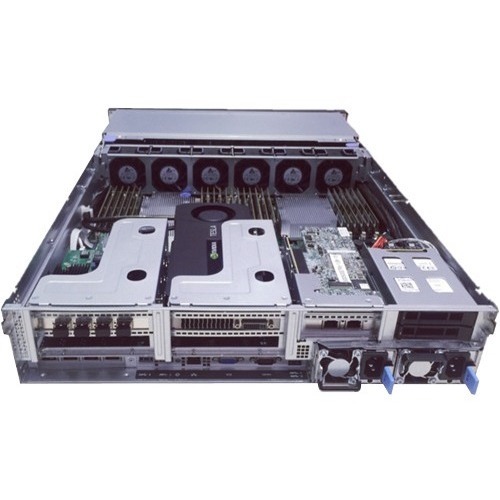

HITACHI 1ES1004 SVR2U24-24 46.08TB 5120 256G 2X10GBE NTAA PCIE RI-0.6DW/D ISE

There is a never-ending need to increase data center performance for storage-intensive applications. The Ultrastar® Serv24 is designed to be a performance-optimized platform for software defined storage (SDS). By integrating CPUs and NVMe™ SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.

Designed for Fast Data

Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and CPU power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements. Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.

General Information
Manufacturer	Western Digital Corporation
Manufacturer Part Number	1ES1004
Manufacturer Website Address	http://www.wdc.com
Brand Name	HGST
Product Line	Ultrastar Serv24
Product Model	SS2U24PUR-1001
Product Name	Ultrastar Serv24 SS2U24PUR-1001 NAS Storage System
Product Type	NAS Storage System
Storage
Number of Boot Drives	2
Number of Solid State Drive Supported	24
Number of Solid State Drive Installed	24
Total Solid State Drive Capacity Supported	184 TB
Total Solid State Drive Capacity Installed	46.08 TB
Processor & Chipset
Processor Manufacturer	Intel
Processor Type	Xeon Gold
Processor Model	5120
Processor Core	Tetradeca-core (14 Core)
Processor Speed	2.20 GHz
Memory
Standard Memory	256 GB
Memory Technology	DDR4 SDRAM
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays	24
Number of 2.5" Bays	24
Total Number of Expansion Slots	3
Expansion Slot Type	PCI Express 3.0 x8
Expansion Slot Type	PCI Express 3.0 x16
Interfaces/Ports
Drive Interface	PCI Express
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Network (RJ-45)	Yes
VGA	Yes
Management & Protocols
Protocols	IPMI 2.0
Power Description
Maximum Power Supply Wattage	1200 W
Physical Characteristics
Height	3.4"
Width	17.6"
Depth	29.9"
Form Factor	Rack-mountable
Rack Height	2U
Weight (Approximate)	54.90 lb
