FLUKE

FLUKE OFP2-100-QI OPTIFIBER PRO QUAD OTDR V2 W/ INSPECTION & WIFI

Mfg Part Number:  OFP2-100-QI
Image may not reflect the actual item.
Price: $15,013.54 + Free Shipping
Quantity:
In Stock: 2
Last Updated: May 10, 2024
No Sales Tax except these states
, PO and Wire.

OptiFiber® Pro is the industry's first OTDR built from the ground up to meet the challenges of enterprise fiber optic infrastructures. This troubleshooting and certification tool combines uncomplicated power, unparalleled efficiency and the exact functions needed for troubleshooting campus, data center and storage fiber networks.

The OptiFiber® Pro OTDR elevates fiber optic testing with the industry's only smartphone interface that turns a technician into a fiber expert. The DataCenter OTDR configuration eliminates uncertainty and errors that occur when testing data center fiber. Its ultra-short dead zones enable testing of fiber patchcords in virtualized data centers. These capabilities, plus the fastest-in-the-industry trace times, make the OptiFiber Pro OTDR a must-have tool.

SmartLoop OTDR enables automated testing and analysis of two fibers in a single test. This patent pending process automatically separates the two fibers for individual pass/fail analysis, display, and reporting. Not only does this cut the testing time by at least half, it also enables bi-directional testing without moving the OTDR to the far end.

Main Specification
General Information
Manufacturer Fluke Networks
Manufacturer Part Number OFP2100QI
Manufacturer Website Address http://www.flukenetworks.com
Brand Name Fluke Networks
Product Line OptiFiber Pro
Product Model OFP2-100-QI
Product Name OptiFiber Pro OFP2-100-QI Cable Analyzer
Product Type Cable Analyzer
Technical Information
Device Function Fiber Optic Cable Testing
Interfaces/Ports
USB Yes
Wireless Specifications
Wireless LAN Yes
Media & Performance
Media Type Supported Optical Fiber
Battery Information
Battery Size Supported 7.2V
Battery Chemistry Lithium Ion (Li-Ion)
Physical Characteristics
Height 11"
Width 5.3"
Weight (Approximate) 3 lb
Miscellaneous

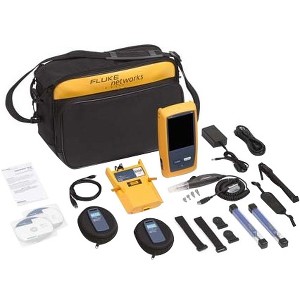

Package Contents
  • OptiFiber Pro OFP2-100-QI Cable Analyzer
  • 1 x Versiv Mainframe
  • 1 x OptiFiber Pro Quad OTDR Module
  • Shoulder Strap
  • Carry Case
  • USB Interface Cable
  • Versiv Open Source Software CD
  • AC Charger
  • 2 x Quick Clean Cleaners (1.25/2.50 mm)
  • 2 x SC/LC Multimode Launch Cables-50 µm
  • 2 x SC/LC Singlemode Launch Cables-9 µm
  • 2 x OTDR Source Port Interchangeable LC Adapters
  • USB Fiber Inspection Video Probe with 4 Tips
  • SC/SC Simplex Adaptor
  • 2 x Launch Fiber Hanging Straps and Magnets
  • Statement of Calibration and Getting Started Guides
Country of Origin United States
