HITACHI
HITACHI 1ES1020 TIGRIS 2U24-24 92.16TB 5120 256G 2X10GBE NTAA PCIE RI-0.5DW/D
Mfg Part Number: 1ES1020 , Item #: 2969830
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $69,574.77
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 25, 2025
No Sales Tax except these states
, PO and Wire.

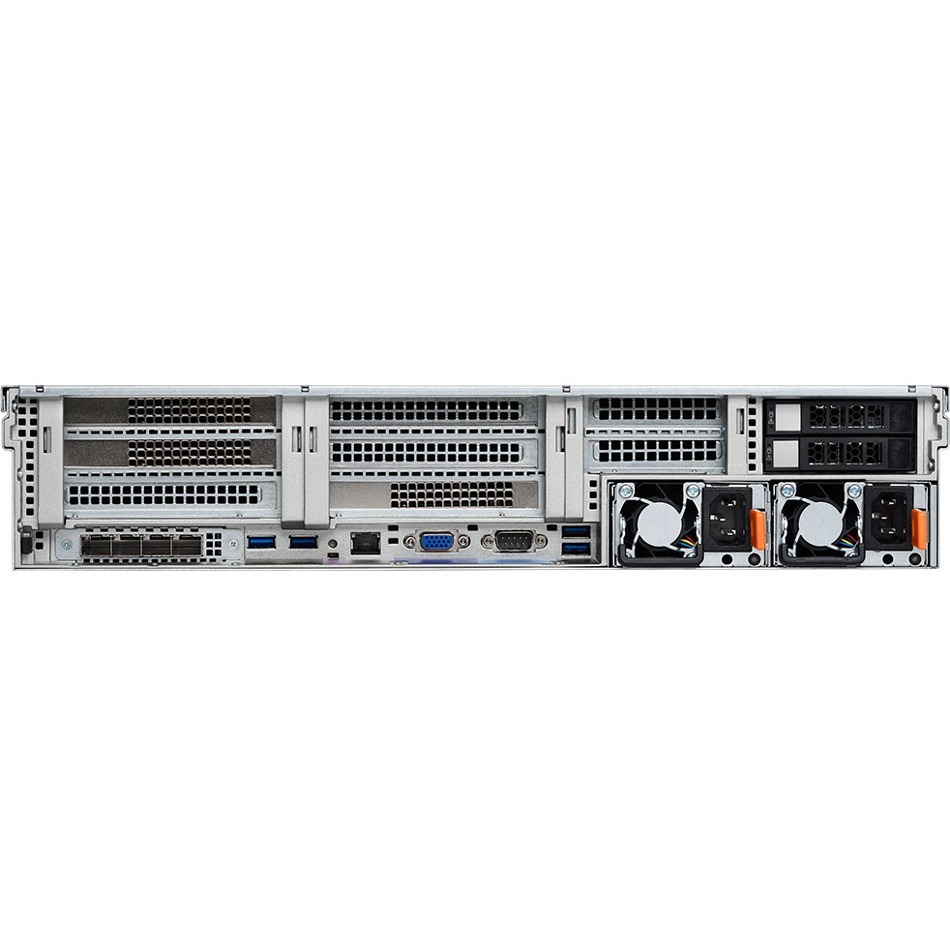

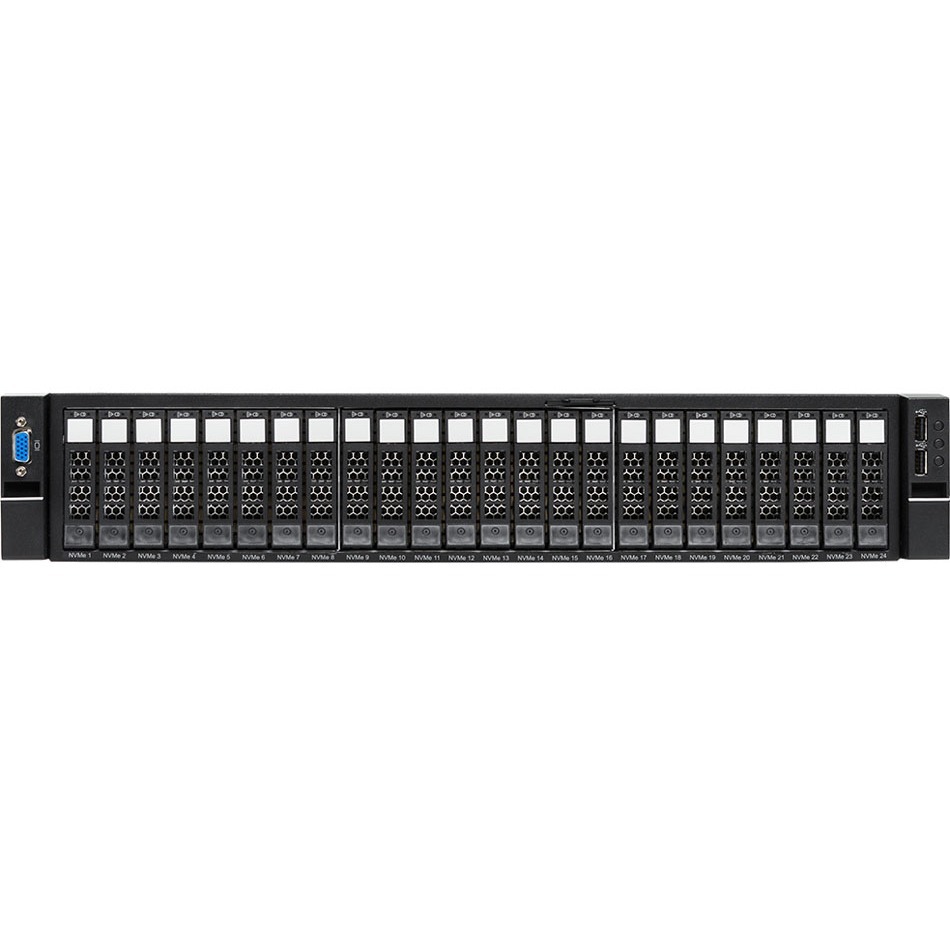

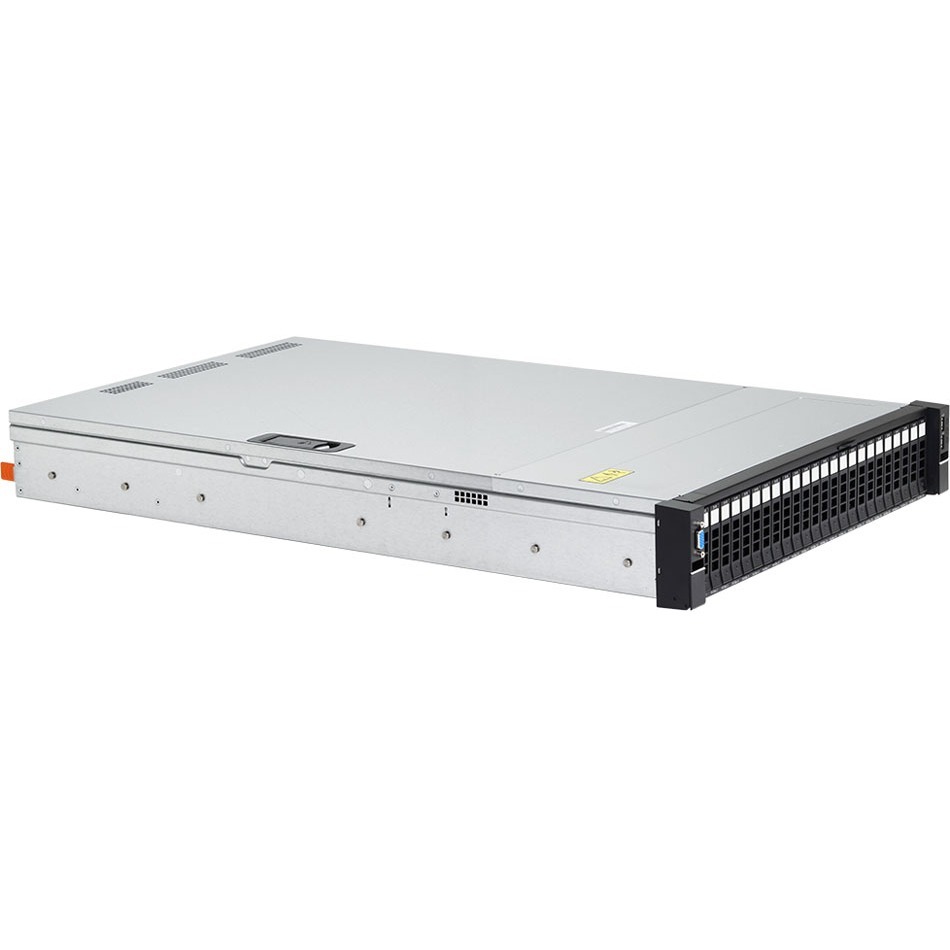

The Storage Server Platform for Software-Defined Storage
There is a never-ending need to increase data center performance for storageintensive applications. To fully realize the benefits of a software-defined storage (SDS) infrastructure, purpose-built storage platforms have become the preferred building blocks for many enterprise data centers.
The Ultrastar Serv24 is designed to be a performance-optimized platform for SDS. By integrating CPUs and NVMe™ SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Designed Enterprise and Cloud Data Centers
The Ultrastar Serv24 is designed to elevate flash performance in demanding, software-defined storage environments.
There is a never-ending need to increase data center performance for storageintensive applications. To fully realize the benefits of a software-defined storage (SDS) infrastructure, purpose-built storage platforms have become the preferred building blocks for many enterprise data centers.
The Ultrastar Serv24 is designed to be a performance-optimized platform for SDS. By integrating CPUs and NVMe™ SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Designed Enterprise and Cloud Data Centers
The Ultrastar Serv24 is designed to elevate flash performance in demanding, software-defined storage environments.
Main Specification
| General Information | |
| Manufacturer | Western Digital Corporation |
| Manufacturer Part Number | 1ES1020 |
| Manufacturer Website Address | http://www.wdc.com |
| Brand Name | HGST |
| Product Line | Ultrastar Serv24 |
| Product Model | SS2U24PUR-1016 |
| Product Name | Ultrastar Serv24 NVMe Storage Server |
| Product Type | NAS Storage System |
| Storage | |
| Number of Boot Drives | 2 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 24 |
| Total Solid State Drive Capacity Supported | 184 TB |
| Total Solid State Drive Capacity Installed | 92.16 TB |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Xeon Gold |
| Processor Model | 5120 |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Speed | 2.20 GHz |
| Memory | |
| Standard Memory | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 3 |
| Expansion Slot Type | PCI Express 3.0 x16 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Controllers | |
| Controller Type | NVMe |
| Interfaces/Ports | |
| Drive Interface | PCI Express |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Management & Protocols | |
| Protocols | IPMI 2.0 |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1200 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 29.9" |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 54.90 lb |
| Warranty | |
| Limited Warranty | 5 Year |
