TRIPP LITE PDU3EVN6L1530B PDU 3PHASE MONITORED 10KW 200/208/240V 42 C13 6 C19 L15-30P

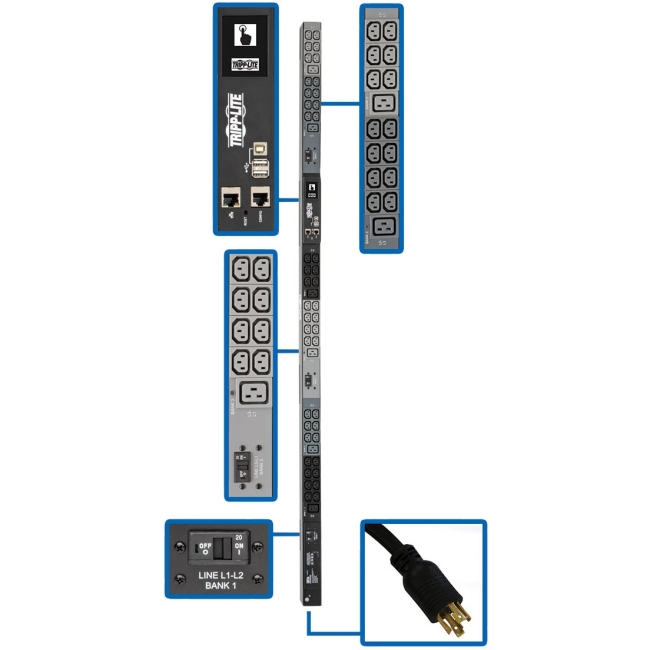

The PDU3EVN6L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU3EVN6L1530B
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDU3EVN6L1530B
Product Name	PDU3EVN6L1530B 48-Outlet PDU
Product Type	PDU
Technical Information
PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	NEMA L15-30P
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	42 x IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19
Protection Type	Overload Protection
Power Description
Input Voltage	230 V AC
Output Voltage	208 V AC
Output Voltage	200 V AC
Output Voltage	240 V AC
Power Rating (Watt)	10 kW
Input Current	24 A
Management
Management	Protocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
Interfaces/Ports
Network (RJ-45)	Yes
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70"
Width	2.2"
Depth	2.9"
Weight (Approximate)	14.93 lb
Miscellaneous
Package Contents	PDU3EVN6L1530B 48-Outlet PDU Configuration Cable 48 x Plug-lock Insert Sleeves Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
