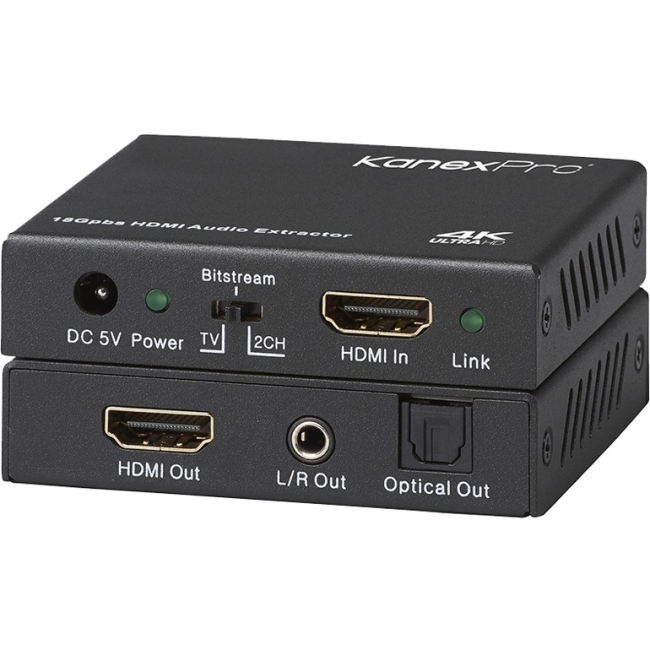

The KanexPro HAECOAX3 is our 3rd gen. audio extractor designed with 18 Gbps of high bandwidth and supporting the latest HDMI 2.0 specifications. This audio extractor will de-embed HDMI audio streams from any HDMI based device to digital or analog stereo maintaining 4K/60 video resolutions with YUV 4:4:4 color space and pass-thru for HDR 10 (High Dynamic Range). Audio formats include LCPM 2-channel stereo, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master audio with audio sampling rate up to 192kHz.
Applications:
Widely used by audiophiles for de-embedding high-fidelity audio signals up to 192kHz and analog 2-channle stereo audio in residential and audio based home theaters. Perfect for de-embedding audio from devices such as, Apple TV 4th generation, Google Chromecast, Xbox One, PS4, Sonos Speaker systems where you can simply extract audio from HDMI and drive it through 2-channel stereo or AV receiver.
| General Information | |
| Manufacturer | KanexPro |
| Manufacturer Part Number | HAECOAX3 |
| Manufacturer Website Address | http://www.kanexpro.com |
| Brand Name | KanexPro |
| Product Name | 18Gbps 4K HDMI Audio Extractor with Dolby Atmos |
| Product Type | Signal Extractor |
| Technical Information | |
| Functions | Audio De-embedding |
| Functions | Audio Extraction |
| Maximum Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| HDMI | Yes |
| Audio Line Out | Yes |
| Physical Characteristics | |
| Height | 0.7" |
| Width | 2.8" |
| Depth | 2.4" |
| Weight (Approximate) | 0.28 lb |
| Warranty | |
| Limited Warranty | 3 Year |
