Upgrade your network with a CAT6 Snagless Networking Cable from Belkin and enjoy clean, clear transmissions. Now you can replace CAT5 cables that don't support 100Base-T or gigabit Ethernet and improve the return loss in your current network by 40 percent. Engineered with 50-micron, gold-plated connectors to ensure clear transmissions and snagless molds to protect the RJ45 tab from damage during installation, this cable meets the performance requirements of Category 6.Belkin Build-To-Order Service: Belkin can manufacture virtually any cable type, length, or color. Contact your Belkin team today to get pricing and lead times.
General Information | |
Manufacturer | Belkin International, Inc |
Manufacturer Part Number | A3L980-03-GRN-S |
Manufacturer Website Address | http://www.belkin.com |
Brand Name | Belkin |

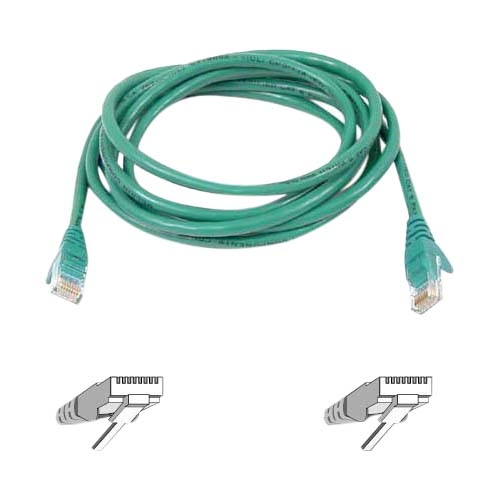

Product Name | 3' Cat6 Snagless Patch Cable Green |
Packaged Quantity | 1 |
Product Type | Network Cable |
Technical Information | |
Cable Type | Category 6 |
Cable Characteristic | Patch Cable |
Cable Length | 3 ft |
Connector Type on First End | RJ-45 Network - Male |
Connector on First End Details | 1 x RJ-45 Network - Male |
Connector Type on Second End | RJ-45 Network - Male |
Connector on Second End Details | 1 x RJ-45 Network - Male |
Contact Plating | Gold |
Device Supported | Network Device |
American Wire Gauge | 24 AWG |
Boot Type | Snagless |
Features | Stranded |
Features | Strain Relief |
Features | Molded |
Physical Characteristics | |
Product Color | Green |
Jacket Material | Polyvinyl Chloride (PVC) |
Warranty | |
Limited Warranty | Lifetime |
Characteristic Impedence | 100±15O @ 1 ~ 550MHz |
Conductor Construction | Bare Stranded Copper |
Conductor Resistance | 93.8O/km/20°C max |
Conductor Size | 24AWG x 4pairs |
Connector Type | 50 micron gold-plated connector |
Description | CAT 6 High Performance UTP Stranded Patch Cable |
Dielectric Strength | AC 1.5kV |
Flame Retardant Test | CM |
Insulation Material | HDPE |
Jacket Diameter | 5.9±0.15mm |
Jacket Material | PVC |
Mutual Capacitance | 56pF/m max |
Propagation Delay | 536nS/100m max @ 550MHz |
Rating | 75°C, 300V |
Spark Test | 2.5kV |
Standards Compliance | ISO/IEC 11801; TIA/EIA-568-B.2-1 |
Structural Return Loss | 8.6dB min at 550MHz |
