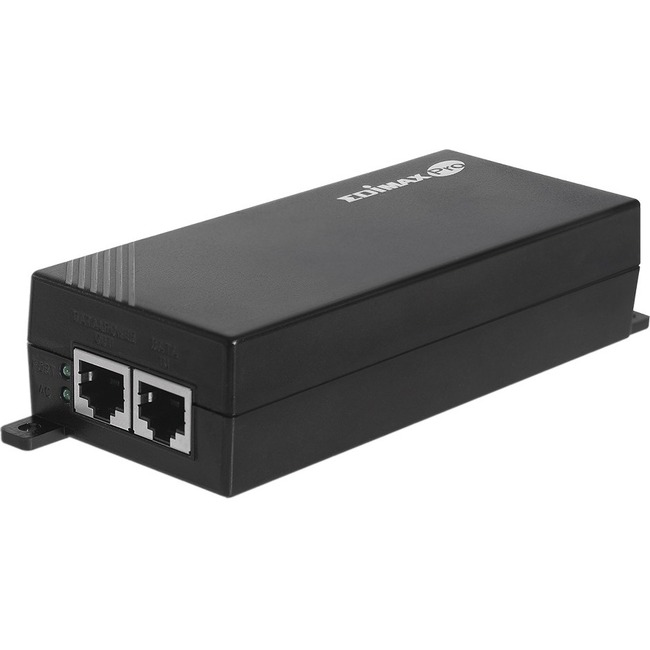

The Edimax GP-101IT is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch or router are merged together and then transmitted to the IEEE 802.3at/af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches.
IEEE 802.3at/af Power over Ethernet StandardBecause of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can directly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported.
Higher Cost Efficiency and Easy Installation The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-101IT reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort.
Flexible & Reliable Power Supply Featuring PoE short circuit protection to safeguard network devices and protect against damage.
Main Specification
General Information |
Manufacturer |
Edimax Technology |
Manufacturer Part Number |
GP-101IT |
Manufacturer Website Address |
http://www.edimax.com |
Brand Name |
Edimax |
Product Series |
Pro |
Product Model |
GP-101IT |
Product Name |
IEEE 802.3at Gigabit PoE+ Injector |
Product Type |
PoE Injector |
Technical Information |
Protection Type |
Short Circuit |
Power Description |
Minimum Frequency |
50 Hz |
Maximum Frequency |
60 Hz |
Maximum Output Power |
30 W |
Interfaces/Ports |
Input Ports |
1 x 10/100/1000Base-T |
Output Ports |
1 x 10/100/1000Base-T |
Physical Characteristics |
Form Factor |
External |
Mount Type |
Wall-mountable/Desk-mountable |
Height |
1.4" |
Width |
2.3" |
Length |
6.1" |
Weight (Approximate) |
6.53 oz |
Miscellaneous |
Compatibility |
- VoIP Telephones
- Network Cameras
- PTZ/Speed Dome IP Camera
- Video Phone
- High Power Wireless AP
- Wireless AP
- IP Camera
|
