STARTECH
STARTECH PEX2S1050 2PORT PCI EXPRESS SERIAL CARD W/ 16C1050 UART RS232 SERIAL CARD
Mfg Part Number: PEX2S1050 , Item #: 2775787
, PO and Wire.

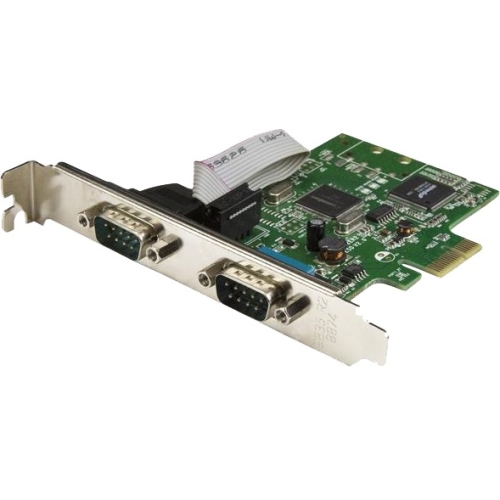

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.
Convenient system upgrades through PCIe
The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.
High-performance serial communication
The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.
Easy installation
The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.
The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX2S1050 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2-Port PCI Express Serial Card with 16C1050 UART - RS232 |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Platform Supported | PC |
| Platform Supported | Linux |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 0.8" |
| Width | 4.7" |
| Weight (Approximate) | 2.20 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
