STARTECH
STARTECH BRACKET125PT 2.5" SSD HDD Mount Brckt
Mfg Part Number: BRACKET125PT , Item #: 2683232
, PO and Wire.

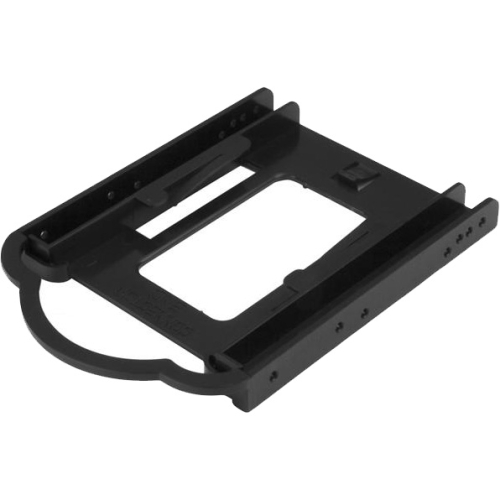

This mounting bracket lets you quickly install a 2.5" SSD or HDD into a single 3.5" bay in a desktop PC or server, with no tools required. The tool-less mounting bracket supports a 2.5" solid-state drive or hard drive from 7 mm to 9.5 mm in height.
The mounting bracket's tool-less design makes it fast and easy to install a 2.5" drive in a computer or server, without the need for additional hardware or tools. It's ideal for system administrators and integrators who are building or upgrading a computing solution for a wide range of businesses and organizations, including schools and hospitals, saving valuable time and effort on installation projects.
The lightweight mounting bracket is designed for trouble-free, reliable performance. To install a drive, you simply secure it into the mounting bracket, without using tools. Then, you put the bracket into a 3.5" drive bay in your computer and the bracket holds the drive in place using the tool-less plastic pegs.
The BRACKET125PT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | BRACKET125PT |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2.5in SSD / HDD Mounting Bracket for 3.5-in. Drive Bay - Tool-less Installation |
| Packaged Quantity | 1 Each |
| Product Type | Drive Bay Adapter |
| Technical Information | |
| Number of Hard Drives Supported | 1 |
| Number of Solid State Drive Supported | 1 |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of 2.5" Bays | 1 |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | Serial Attached SCSI (SAS) |
| Drive Interface | SATA/600 |
| Drive Interface | U.2 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Form Factor | Internal |
| Compatible Drive Bay Width | 3.5" |
| Height | 0.5" |
| Width | 4" |
| Depth | 5.9" |
| Weight (Approximate) | 1.20 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| End of Life Manual Availability | Yes |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/bracket125pt_rohs.pdf |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/bracket125pt_rohs.pdf |
| REACH free of SVHC | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
