V7 UPS
V7 UPS UPS1RM2U1500-1N 1500VA UPS RACK MOUNT 2U LCD 8OUT NEMA SINE WAVE 120V ECO
Mfg Part Number: UPS1RM2U1500-1N , Item #: 2624383
, PO and Wire.

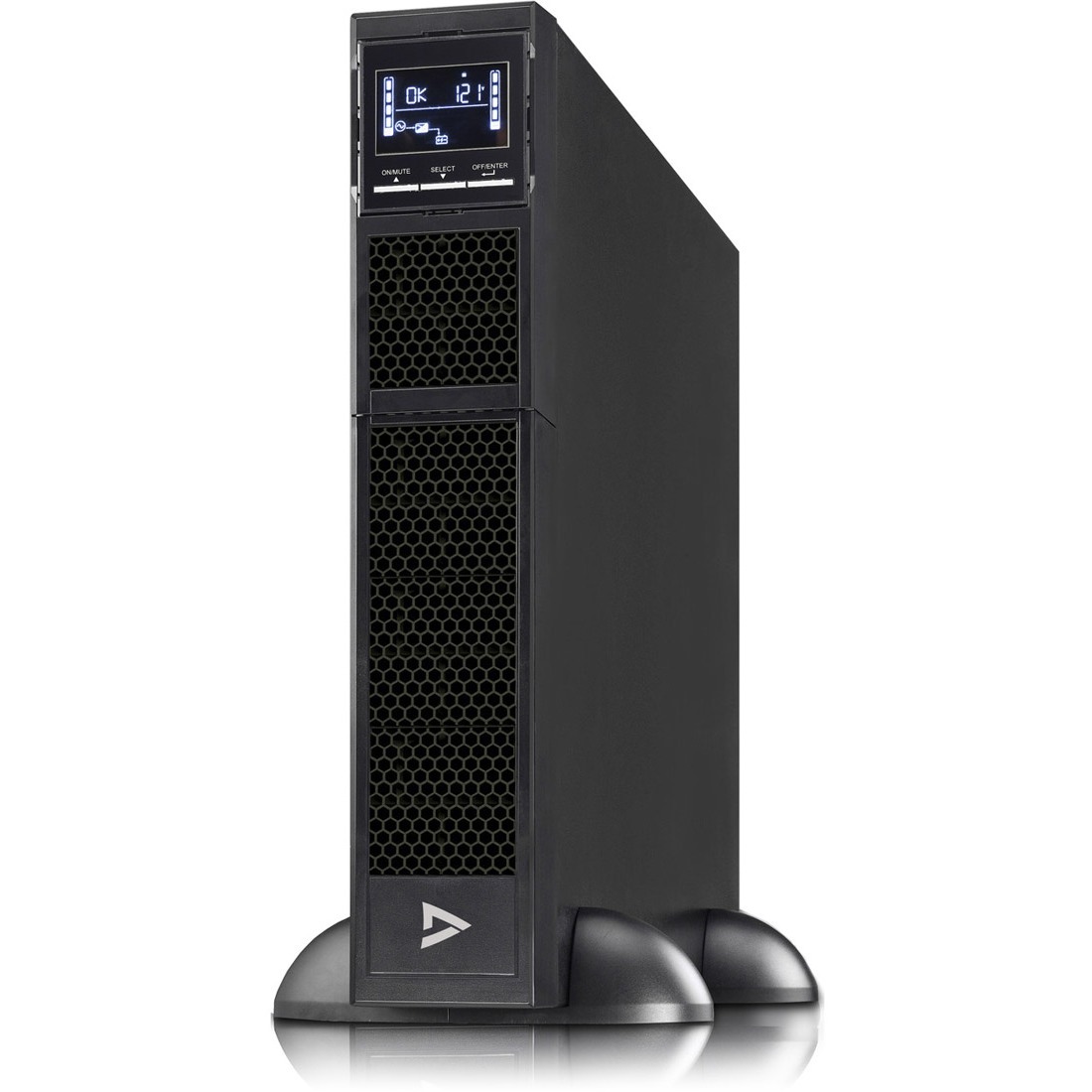

The 1500VA Rack Mount UPS from V7 provides backup power for mission critical equipment in server rooms, data centers, and other vital equipment. It ensures a consistent flow of electricity to help prevent costly equipment failure and data loss during power failures, brownouts, or other power issues. Featuring Auto Voltage Regulation (AVR) to adjust for under-voltage and over-voltage to ensure stable power, the Rack Mount UPS also features an Efficiency Corrective Optimizer (ECO) to maximize energy savings. Additionally, the Rack Mount UPS enables you to manage backup time to critical devices with programmable power outlets and set shorter back up time for non-critical devices and also features audio and visual alarms for efficient and immediate warning of battery, load, and other issues.
| General Information | |
| Manufacturer | V7 |
| Manufacturer Part Number | UPS1RM2U1500-1N |
| Manufacturer Website Address | http://www.v7-world.com |
| Brand Name | V7 |
| Product Model | UPS1RM2U1500-1N |
| Product Name | UPS 1500VA Rack Mount 2U US |
| Product Type | Standby UPS |
| Technical Information | |
| Receptacle Detail | 8 |
| Dataline Protection | RJ-11 |
| Dataline Protection | RJ-45 |
| Cord Length | 10 ft |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Input Voltage | 120 V AC |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 720 J |
| Management | |
| Alarm | Overload |
| Alarm | Low Battery |
| Alarm | On Battery |
| Controls/Indicators | |
| Status Indicators |
|
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12.70 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 20.1" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 48.06 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
