CYBERPOWER

CYBERPOWER RELAYIO500 UPS RELAY IO MANAGEMENT CARD DB9 5-OUT 1-IN CONTACTS 3YR WARR

Mfg Part Number:  RELAYIO500
Image may not reflect the actual item.
Price: $133.45 + Free Shipping
Quantity:
In Stock: 8
Last Updated: Feb 01, 2026
No Sales Tax except these states
, PO and Wire.

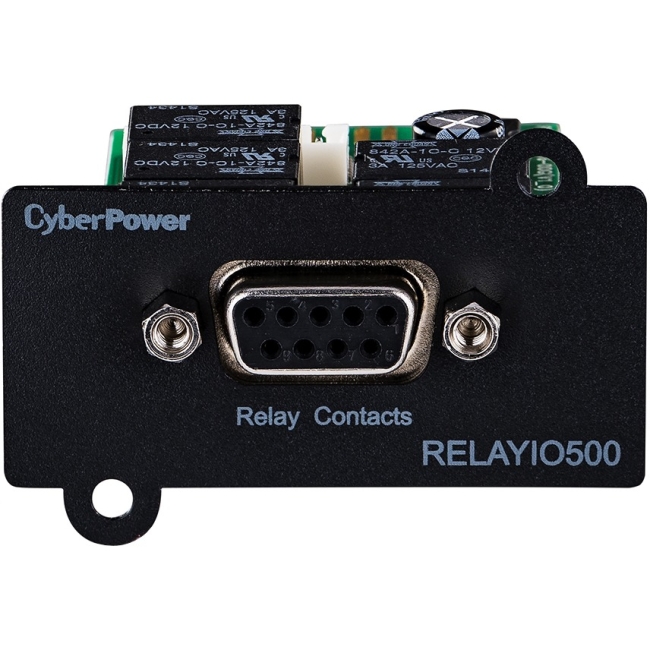

The CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.

Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.

Main Specification
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number RELAYIO500
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series UPS Hardware
Product Model RELAYIO500
Product Name RELAYIO500 Network Management Card
Product Type Remote Power Management Adapter
Technical Information
Proprietary Slot Type Mini Slot
Interfaces/Ports
Serial Yes
Physical Characteristics
Height 0.6"
Width 1.7"
Depth 3.2"
Weight (Approximate) 1.76 oz
Miscellaneous
Package Contents
  • RELAYIO500 Remote Power Management Adapter
  • Quick Reference Manual
Additional Information
  • Contact Closure Outputs : 5
  • External S/D Voltage : 7.5 - 12 VDC
  • Input Signal Contact : 1 - UPS shutdown in Battery Mode
  • Output Relay Rating (Max.) : 30 VDC / 125 VAC, 3A (per relay)
  • Physical Dimensions - (WxHxD) (cm) : 4.19 x 1.52 x 8.13 (cm)
  • Physical Dimensions - (WxHxD) (in) : 1.65 x 0.6 x 3.2 (in)
  • Physical Dimensions - (WxHxD) (mm) : 42 x 15 x 81 (mm)
  • Weight (kg) : 0.05
  • Weight (lb) : 0.11
  • Shipping Dimensions - (WxHxD) (cm) : 5.87 x 16.61 x 16.89 (cm)
  • Shipping - Dimensions (WxHxD, in) : 2.31 x 6.54 x 6.65 (in)
  • Shipping - Dimensions (WxHxD, mm) : 58.67 x 166.12 x 168.91 (mm)
  • Shipping - Weight (kg) : 9.3
  • Shipping - Weight (lb) : 20.5
  • USB Charge Port : No
  • Hardware Connection Port : Serial
  • Color : Black
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Relative Humidity : 0 - 95% (non-condensing)
  • Storage Temperature : 14 - 122 °F (-10 - 50 °C)
  • Models : OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL2200RTXL2U, OL3000RTXL2U, OL3000RTXL2UHV
  • UPS Models : OR Series UPS systems|PR Series UPS systems|OL1000RTXL2U|OL1500RTXL2U|OL1500RTXL2UN|OL2200RTXL2U|OL3000RTXL2U|OL3000RTXL2UHV
  • Environmental : RoHS Compliant
  • Extended Warranty Option : WEXT5YR-ACC1A
  • Product Warranty : 3 Year Limited Warranty
    		•
    Compatibility
    • All OR Series UPS Systems
    • All PR Series UPS Systems
    • OL1000RTXL2U
    • OL1500RTXL2U
    • OL1500RTXL2UN
    • OL3000RTXL2UHV
    • OL2200RTXL2U
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 3 Year
