Protects Mission-Critical Equipment
Reliable Battery Backup
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
LED Indicators
Network Management Cards
Communication Ports
Telephone/Network Jacks
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | SMART1050SLT |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | SmartPro |

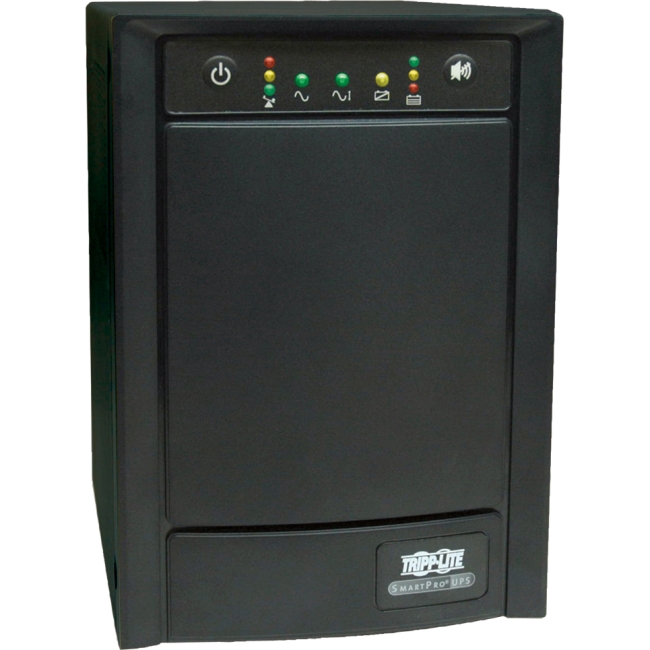

Product Name | SMART1050SLT SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS |
Product Type | Line-interactive UPS |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 8 x NEMA 5-15R |
Cord Length | 6 ft |
Power Description | |
Load Capacity (VA) | 1050 VA |
Load Capacity (Watt) | 650 W |
Input Voltage | 120 V AC |
Input Voltage | 110 V AC |
Input Voltage | 100 V AC |
Output Voltage | 100 V AC |
Output Voltage | 110 V AC |
Output Voltage | 120 V AC |
Waveform Type | Sine Wave |
Management | |
Network Management | SNMP Manageable |
Alarm | Overload |
Alarm | On Battery |
Controls/Indicators | |
Status Indicators | Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. Also includes 1 rear panel site wiring fault indicator. |
Interfaces/Ports | |
USB | Yes |
Battery Information | |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 7 Minute |
Backup/Run Time (Half Load) | 19 Minute |
Battery Life | 6 Year |
Hot Swappable | Yes |
Typical Battery Recharge Time | 4 Hour |
Environmental Conditions | |
Maximum Operating Temperature | 104°F (40°C) |
Physical Characteristics | |
Height | 10.2" |
Width | 6.8" |
Depth | 13.2" |
Form Factor | Tower |
Weight (Approximate) | 43 lb |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Warranty | |
Limited Warranty | 3 Year |
General Information | |
Power Rating | - |
Output Voltage Rating | - |
Number of Outputs | - |
Runtime-Full Load | - |
Runtime-Half Load | - |
General Information | |
Manufacturer | Tripp Lite |
Manufacturer Part Number | SMART1050SLT |
Manufacturer Website Address | www.tripplite.com |
Product Line | SmartPro |
Product Series | Tower |
Product Name | SmartPro Tower 1050SLT UPS |
Marketing Information | Tripp Lite's SMART1050SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 18 minutes half load runtime and 6 minutes fully loaded. 1050VA / 670 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications interfaces support messaging of UPS and line power status, plus output power control for scheduled or immediate reboot of all connected devices at once. Includes PowerAlert UPS monitoring and unattended shutdown software with built-in management support for an unlimited number of network UPS systems. Free PowerAlert enterprise management software is also available for select opportunities. Built-in audible alarm and 15 LEDs provide graphical readout of line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, black tower housing in rugged all-metal enclosure. Two year warranty with $250,000 Ultimate Lifetime Insurance. |
Product Type | Line-interactive UPS |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Receptacles | 8 x NEMA 5-15R |
Power Description | |
Load Capacity | 1050VA / 670W |
Input Voltage | 110V AC |
Input Voltage Range | 120V AC Single-phase |
Output Voltage | 120V AC Single-phase |
Frequency | 60Hz |
Waveform Type | Sine Wave |
Filtering | EMI / RFI |
Management | |
Network Manageability | SNMP Manageable Optional |
Overload Protection | 15A input breaker |
Audible Alarms | |
Controls/Indicators | |
Status Indicators | Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. Also includes 1 rear panel site wiring fault indicator. |
Interfaces/Ports | |
Interfaces/Ports | |
Modular Slots | 1 x Communications Slot |
Battery Information | |
Batteries | Sealed Lead-acid User-replaceable Hot-swappable |
Battery Life | 3 Year(s) to 6Year(s) |
Backup/Run Time | |
Battery Recharge Time | 4 Hour(s) |
Environmental Conditions | |
Temperature | 32 °F (0 °C) to 104 °F (40 °C) Operating |
Humidity | 0 to 95% Non-condensing Relative Humidity |
Physical Characteristics | |
Form Factor | Tower |
Power Cord/Cable | 6 ft |
Dimensions | 8.75" Height x 6.75" Width x 16.75" Depth |
Shipping Dimensions | 13" Height x 10" Width x 23.75" Depth |
Weight | 43 lb |
Shipping Weight | 48.5 lb |
Miscellaneous | |
Package Contents | |
Additional Information | |
System Requirement | TYPICAL APPLICATIONS: Ideal for the protection of network fileservers, internetworking gear, switches, hubs, POS terminals, VOIP telephony and traditional PBX switching systems, back office computer systems, ATM machines, informational/internet/commerce kiosks, remote unattended servers, web servers, database servers, security systems, card readers, security cameras and other sensitive electronic devices requiring clean, continuously-regulated output power. |
Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), IEC 1000-4-2 Level 3 (Electrostatic Discharge), IEC 1000-4-4 Level 2 (Fast Transient / Burst), IEC 1000-4-5 Level 3 (Lightning Surge), Conforms to IEEE 587 / ANSI C62.41 specifications |
Manufactures Warranty | |
Standard Warranty | 2 Year(s) |
