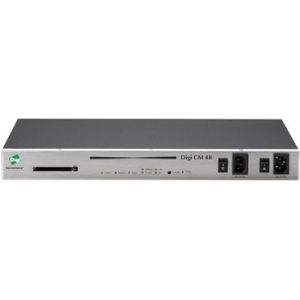

70001951 Digi CM 48 port dual power RJ-45 Console Server

The Digi CM 16 dual AC Console Server provides in band or out of band console management of any network equipment with a serial console port. Remote out of band management is made easy for administrators, who can securely monitor and control servers, routers, switches, PBXs, firewalls and other network devices from anywhere on the corporate TCP/IP network, over the Internet, or through dial up modem connections using Digi CM 16 dual AC 16-Port Console Server best in class integrated web user interface.

General Information
Manufacturer	Digi International
Manufacturer Part Number	70001951
Manufacturer Website Address	http://www.digi.com
Brand Name	Digi
Product Line	CM
Product Model	CM 48
Product Name	CM 48 48-Port Console Server
Product Type	Device Server
Media & Performance
Media Type Supported	Twisted Pair
Network & Communication
Ethernet Technology	Fast Ethernet
Network Standard	10/100Base-TX
Interfaces/Ports
Network (RJ-45)	Yes
Management Port	Yes
Number of Network (RJ-45) Ports	1
Physical Characteristics
Form Factor	Rack-mountable
Height	17.5"
Width	10"
Depth	1.8"
Weight (Approximate)	6.40 lb
Miscellaneous
Package Contents	CM 48 48-Port Console Server 19" Rack Mount Kit
Country of Origin	United States
Warranty
Limited Warranty	5 Year

Mechanical
Dimensions: WxHxD (mm)	445 x 254 x 45
Mounting	Rack Mount
Enclosure	Metal
Interface
Serial interface	RS232
Serial interface number of ports	48
Serial Interface type of connector	RJ45
Network interface	1 Port Ethernet RJ45 Connector
Network interface number of ports	1
Network interface type of connector	RJ45
Power
Power Input Type	Dual AC/AC / Plug
Operating Supply Voltage	100 to 240 VAC
Power Consumption	12W
Reliability
Operating Temperature	5 to 50C
Isolation Protection	-
Surge Protection	-
Standards and Certifications	EMC CE, FCC Part 15 Subpart B (Class A)

With Digi CM, administrators can securely monitor and control servers, routers, switches, PBX, Firewalls and other network devices from anywhere on the corporate TCP/IP network, over the Internet, or through dial-up modem connections even when the server is unavailable through the network. Digi CM employs SSH v2 encryption to keep server access passwords safe from hackers and supports all popular SSH clients, as well as secure access from any Java-enabled browser. Digi CM is the first console server to provide a secure graphical user interface (GUI) for easy out-of-band management of Microsoft Windows Server 2003 systems. Digi CM connects to serial console ports using standard CAT5 cables, eliminating the hassles of custom cabling. In addition, the Digi CM offers a PCMCIA card slot for adding dialup modems or wireless network cards. Flash memory cards can be used to save port logs and backup configuration files.

Device Type	Console server
Height (Rack Units)	1U
Width	17.5 in
Depth	10 in
Height	1.8 in
Processor / Memory / Storage
RAM Installed ( Max )	256 MB SDRAM
Flash Memory Installed (Max)	32 MB flash
Networking
Form Factor	External
Ports Qty	48
Connectivity Technology	Wired
Data Link Protocol	RS-232
Remote Management Protocol	SNMP, Telnet, HTTP
Features	LDAP support
Encryption Algorithm	SSL
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Expansion / Connectivity
Expansion Slots Total (Free)	1 ( 1 ) x PC Card
Interfaces	1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 48 x serial - RS-232 - RJ-45 1 x management - console - RJ-45
Miscellaneous
Compliant Standards	CE, FCC Class A certified, EN 60950, UL 1950, EN55024, EN55022 Class A
Power
Power Device	Power supply - internal
Installed Qty	2
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	40 Watt
Software / System Requirements
OS Provided	Linux
Manufacturer Warranty
Service & Support	5 years warranty
Service & Support Details	Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	122 °F

Download DataSheet
