KANEXPRO SP-HDBT1X4 HDBASET 70M 1X4 DISTRIBUTION AMPLIFIER
Mfg Part Number: SP-HDBT1X4 , Item #: 2515899
, PO and Wire.

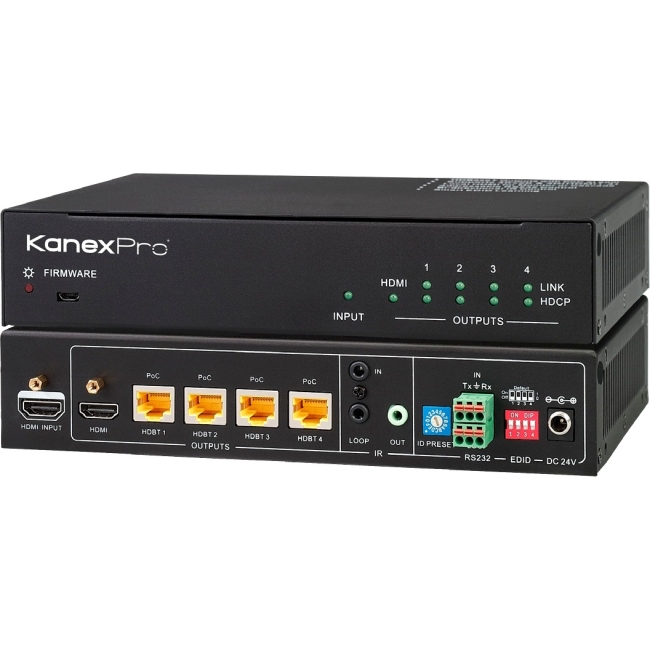

The KanexPro one HDMI input with four output over HDBaseT is a half-rack width distribution amplifier, which reliably distributes one HDMI source signal to four Ultra HD 4K displays over single CAT6. It can also be daisy -chained to support up to 16-displays without losing any signal integrity using HDBaseT technology.
The SP-HDBT1X4 is HDCP compliant supporting 1080p/60 and Ultra HD 4K resolutions. To make better integration, this DA provides integrator- friendly features such as EDID management, local HDMI output and RS-232 control for 3rd party control systems.
The SP-HDBT1X4 is ideally used for ultra HD signal transmission or broadcasting digital signage and large scale control centers where HD & 4K signals can be sent to 4 and/or 16 displays up to 230 feet (70m) over shielded CAT6.
| General Information | |
| Manufacturer | KanexPro |
| Manufacturer Part Number | SP-HDBT1X4 |
| Manufacturer Website Address | http://www.kanexpro.com |
| Brand Name | KanexPro |
| Product Model | SP-HDBT1X4 |
| Product Name | 4K HDBaseT 1x4 Distribution Amplifier up to 230 feet (70m) |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Warranty | |
| Limited Warranty | 3 Year |
