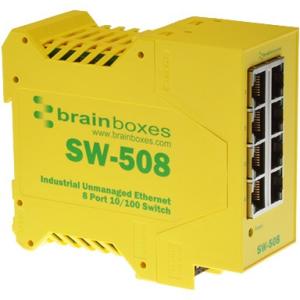

BRAINBOXES SW-508 INDUSTRIAL ETHERNET 8PORT SW -22 TO+176 DEGF GALVANIC ISOLATION
Mfg Part Number: SW-508 , Item #: 2498172
Image may not reflect the actual item.
Price: $112.99
Quantity:
In Stock: 141
Last Updated: May 15, 2024
No Sales Tax except these states
, PO and Wire.
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Main Specification
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-508 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | SW-508 |
| Product Name | Industrial Ethernet 8 Port Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 4.5" |
| Width | 3.9" |
| Depth | 1.8" |
| Weight (Approximate) | 5.64 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
