TRIPP LITE SRW12USDP 12U WALL MOUNT RACK ENCL SVR CABINET HINGED DOOR DEEP
Mfg Part Number: SRW12USDP , Item #: 2478848
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

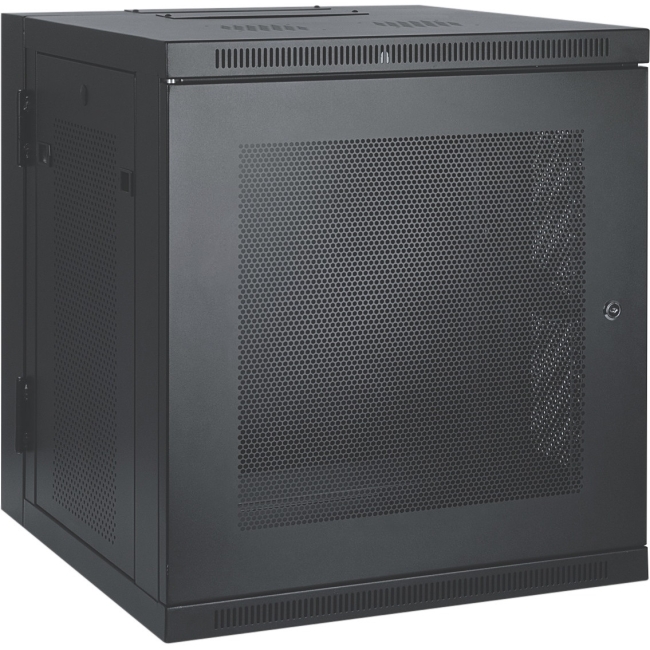

The SRW12USDP SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRW12USDP |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SRW12USDP |
| Product Name | SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | UPS |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Maximum Weight Capacity | 200 lb |
| Static/Stationary Weight Capacity | 200 lb |
| Height | 25.1" |
| Width | 23.6" |
| Depth | 25.5" |
| Rack Height | 12U |
| Rack Width | 19" |
| Rack Depth | 24.50" |
| Weight (Approximate) | 63.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
