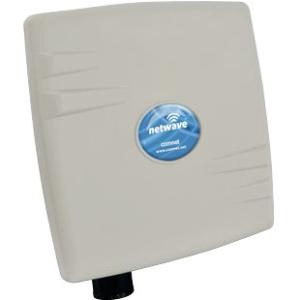

The NetWave® industrially hardened wireless Ethernet transmission link can be configured through the embedded User Interface as a Client or as an Access Point. This point-to-multipoint model allows multiple Ethernet endpoints to be connected to a central Access Point. Up to 15 endpoints can be linked to a central access point. The NW1/M and NW2/M support up to 95Mbps throughput using MIMO technology. The units can be powered by an IEEE 802.3af PoE compliant device or through the supplied power injection module. The NW1/M is FCC certified for use in North America and the NW2/M is ETSI, DFS and TPC certified for use in the European Union. These links are an ultra-small form factor addition to the ComNet NetWave product family.
General Information | |
Manufacturer | ACRE |
Manufacturer Part Number | NW1/M |
Manufacturer Website Address | http://www.acre-co.com |
Brand Name | ComNet |
Product Line | NetWave |
Product Model | NW1/M |
Product Name | Mini Industrially Hardened Point-to-Multipoint Wireless Ethernet Link |
Product Type | Wireless Bridge |
Technical Information | |
Wireless LAN Standard | IEEE 802.11n |
Frequency Band | 5 GHz |
Outdoor Antenna Range | 2 Mile |
Wireless Transmission Speed | 95 Mbit/s |
MIMO Technology | Yes |
Interfaces/Ports | |
Ethernet Technology | Fast Ethernet |
Ethernet Technology | Ethernet |
Number of Network (RJ-45) Ports | 1 |
PoE (RJ-45) Port | Yes |
PoE PD Port | Yes |
VGA | No |
HDMI | No |
USB | No |
Powerline | No |
Management Port | No |
Power Description | |
Power Consumption | 5.50 W |
Physical Characteristics | |
Form Factor | Pole-mountable |
Height | 2.2" |
Width | 7.4" |
Depth | 7.4" |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Warranty | |
Limited Warranty | Lifetime |
