ADLINK Technology

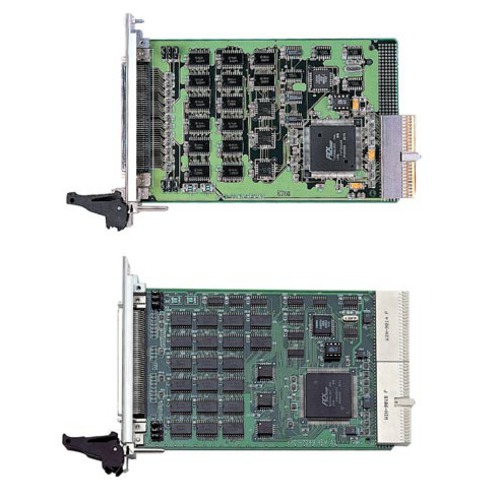

ADLINK Technology cPCI-7249R 3U, 48-bit parallel digital I/O rear I/O version

Mfg Part Number:  cPCI-7249R
Image may not reflect the actual item.
Price: $554.61
Quantity:
Status: Active
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:

Features

  • 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
  • 48-CH digital TTL inputs/outputs
  • Emulates 4/2/1 industry standard 8255 PPI (mode 0)
  • Buffered circuits for higher driving capability
  • Ports are independently configurable as input or output
  • External latch signal available for digital inputs
  • Output status read back
  • Known power-up states

    Introduction

    ADLINK cPCI-7248 and cPCI-7249R are 48-bit parallel digital input/output (DIO) modules for PXI/CompactPCI form factor The cPCI-7248 and cPCI-7249R devices emulate mode 0 of the industry standard 8255 Programmable Peripheral Interface (PPI) chips. Each PPI offers three 8-bit ports, Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The cPCI-7248 and cPCI-7249R devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The cPCI-7248 and cPCI-7249R devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer. The cPCI-7249R is the extended version of the cPCI- 7248, which features one more latch register and rear I/O connectivity.

    • If you need accessory information for this product, please use our Online Contact Us Form , our industrial sales team is here to help you find the accessories.
