ENGENIUS

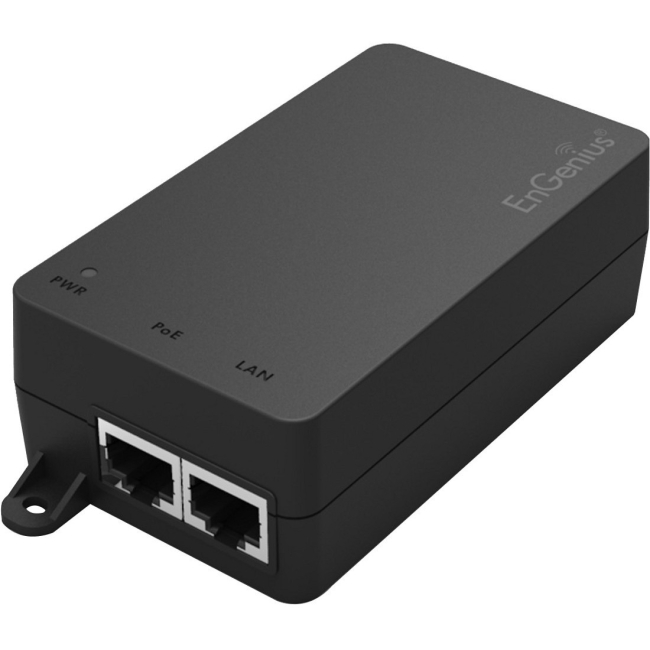

EPA5006GAT EnGenius 802.3at/af Compatible Gigabit Single Port Poe Adapter
Mfg Part Number: EPA5006GAT , Item #: 2206175
Image may not reflect the actual item.
Price: $49.95
Quantity:
In Stock: 56
Last Updated: Oct 30, 2024
No Sales Tax except these states
, PO and Wire.
EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an 802.3at/af - compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.
Outdoor Networking Facility and Low Port Density Installations
The EPA5006GAT PoE adapter is fully compliance with 802.3at/af defection mechanism, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for 802.3at/af devices. By sending maximum 30W output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an 802.3at/af - compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.
Outdoor Networking Facility and Low Port Density Installations
The EPA5006GAT PoE adapter is fully compliance with 802.3at/af defection mechanism, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for 802.3at/af devices. By sending maximum 30W output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
Main Specification
| General Information | |
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | EPA5006GAT |
| Manufacturer Website Address | http://www.engeniustech.com |
| Brand Name | EnGenius |
| Product Model | EPA5006GAT |
| Product Name | 802.3at/af Compatible Gigabit Single Port Poe Adapter |
| Product Type | PoE Injector |
| Technical Information | |
| Protection Type | Over Voltage |
| Protection Type | Overload Protection |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Maximum Input Current | 800 mA |
| Minimum Frequency | 47 Hz |
| Maximum Frequency | 63 Hz |
| Maximum Output Power | 30 W |
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit Ethernet |
| Physical Characteristics | |
| Form Factor | External |
| Mount Type | Wall Mountable |
| Height | 1.3" |
| Width | 2.3" |
| Depth | 3.9" |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
