Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
Main Specification
General Information |
Manufacturer |
Tripp Lite by Eaton |
Manufacturer Part Number |
IS500HG |
Manufacturer Website Address |
https://tripplite.eaton.com/ |
Brand Name |
Tripp Lite by Eaton |
Product Line |
Yes |
Product Name |
IS500HG |
Product Type |
Surge Suppressor/Protector |
Technical Information |
Plug/Connector Type |
NEMA 5-15P |
Receptacles |
4 x NEMA 5-15R |
Power Description |
Input Voltage |
120 V AC |
Output Voltage |
120 V AC |
Surge Energy Rating |
680 J |
Physical Characteristics |
Power Cord/Cable Length |
10 ft |
Weight (Approximate) |
22.20 lb |
Miscellaneous |
Package Contents |
- IS500HG Isolation Transformer
- Instruction manual with warranty information
|
Country of Origin |
Taiwan |
TAA Compliant |
Yes |
Warranty |
Limited Warranty |
2 Year |
General Information |
Product Type |
Isolation Transformers
|
Power Rating |
500 VA
|
Primary Voltage Rating |
120 V
|
Secondary Voltage Rating |
-
|
Secondary Current Rating |
-
|
Mounting Style |
-
|
Primary Winding |
-
|
Secondary Winding |
-
|
Length |
5.7 in
|
Width |
158.75 mm
|
Height |
146.05 mm
|
Outside Diameter |
-
|
Tripp Lite Isolator series UL2601-1 listed Hospital Grade isolation transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas. Isolation transformer with Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels below 300 microamps. Secondary neutral to ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Isolation transformer removes EMI/RFI noise, utility switching transients, and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A and B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 6-ft power cord, hospital grade input plug, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for placement in any industrial, medical, office or network environment.
Features:

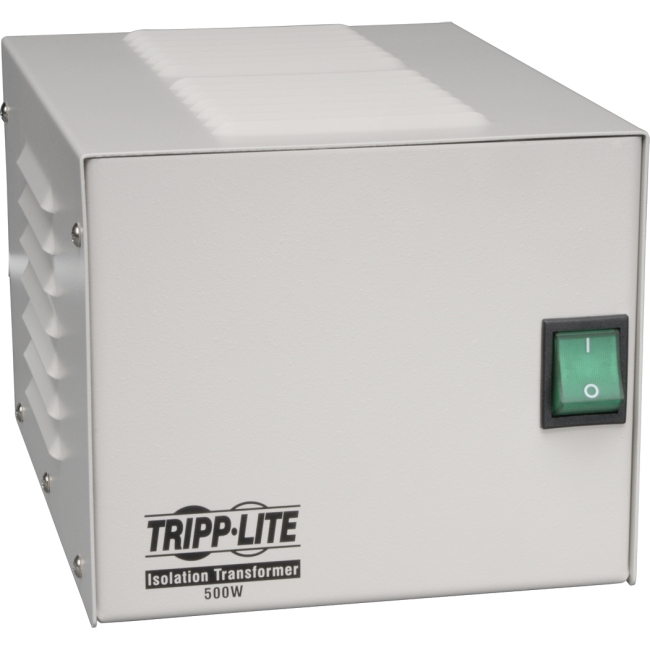

Tripp Lite's IS500HG Hospital Grade isolation transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression
Internal low-impedence isolation transformer with Faraday shield offers 100% isolation from the input AC line
Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.
Reduces the cumulative leakage current of the Isolator and connected equipment to levels below 300 microamps
Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
Serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades
Removes EMI/RFI noise, utility switching transients, load generated harmonics and ground loops
Additional surge suppression components placed at the line input and output combined with full line isolation offers continuous filtering of a full range of power line noise in all modes
Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power environments to harmless levels
Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
Includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 6 ft power cord, hospital grade input plug, circuit breaker overload protection and lighted power switch.
Rugged all-metal unit housing ships ready for upright tower or wallmount placement in any industrial, medical, office or network environment
2-year limited product warranty
Package Includes:
IS500HG Isolation Transformer
Instruction manual with warranty information.
Specifications:
Manufacturer
|
|
TRIPP LITE
|
Manufacturer Website
|
|
www.tripplite.com
|
Nominal Voltage /
Frequency |
|
120 /60Hz |
|
VA / Watt Capacity |
|
500 |
|
Amp Capacity |
|
4.2A at 120V AC |
|
Transformer Type |
|
Medical-grade, low
impedence transformer-based line isolation transformer |
|
Total Harmonic
Distortion |
|
Less than 1% |
|
Over Current
Protection |
|
4.5A circuit breaker |
|
Output Receptacle
Qty / Type |
|
4 NEMA 5-15R
hospital-grade outlets |
|
Input Plug Type |
|
NEMA 5-15P
hospital-grade plug |
|
Input Cord Length |
|
6.00 ft /1.83 m |
|
Leakage Current |
|
Less than 300
microamps |
|
Efficiency |
|
96% |
|
Suppression Joule
Rating |
|
680 (510 input/170
output) |
|
Noise Suppression
Rating |
|
35-65 DB |
|
Surge Test
Conditions |
|
Per ANSI/IEEE C62.41
- IEEE587 Cat. A & B test waveforms |
|
Let-through
Voltage (Ring Wave) |
|
L-N: 20V L-G: 20V
N-G: 0.5V |
|
Let-through
Voltage (Combination Wave) |
|
L-N: 250V L-G: 250V
N-G: 0.5V |
|
Cooling Method |
|
Convection |
|
Form Factor |
|
Small tower format |
|
Unit Dimensions
(HWD/in.) |
|
5.75 x 6.25 x 9.25 |
|
Shipping Weight |
|
23.20 lbs./10.52 kg |
|
Warranty |
|
2-year limited
product warranty |
|
Approvals |
|
UL (UL Series
AGIS500YWN) , cUL |
|
|
