CYBERPOWER

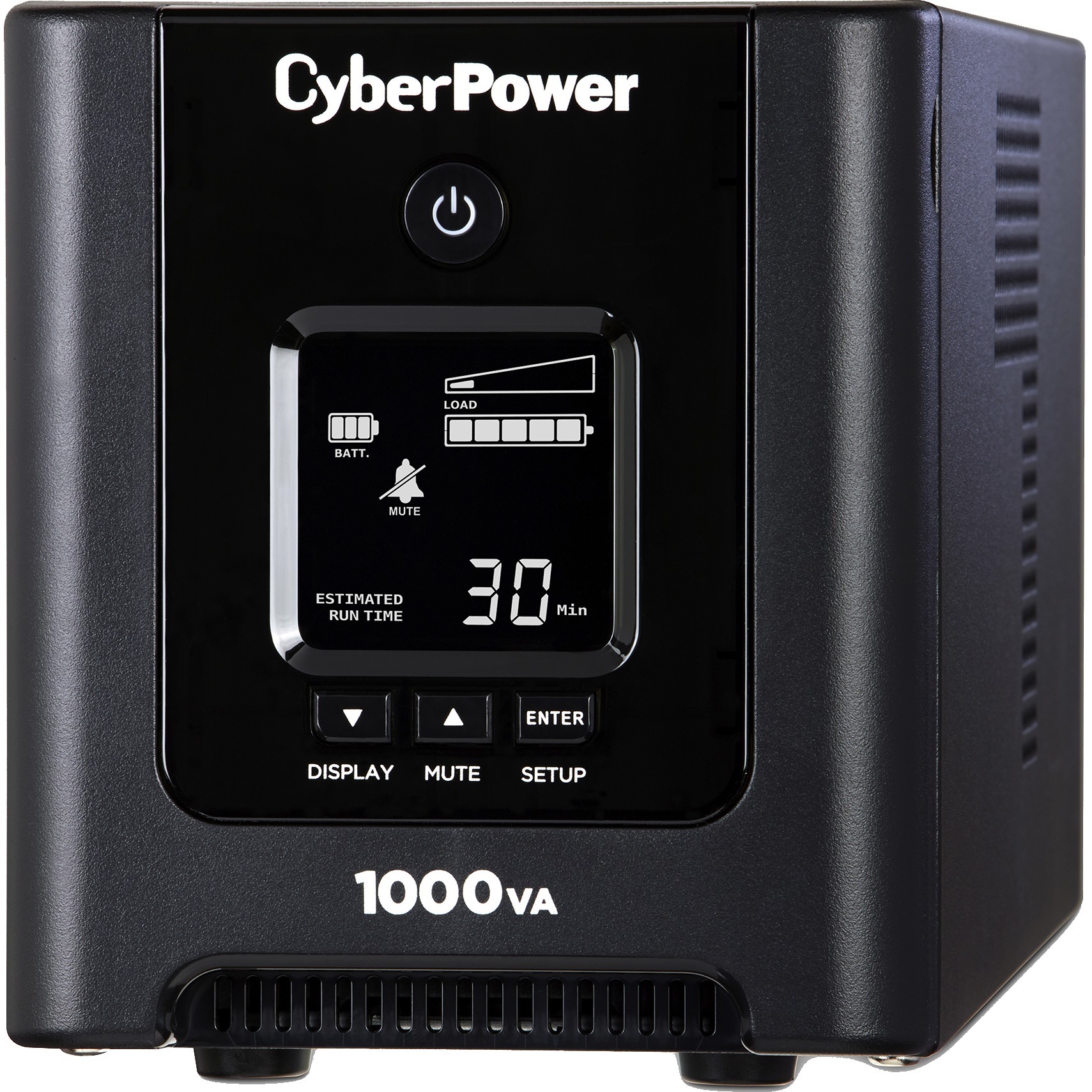

Cyberpower PFC Sine Wave OR1000PFCLCD mini-tower 1000VA 700W

Mfg Part Number:  OR1000PFCLCD
Image may not reflect the actual item.
MAP Price: $399.95 + Free Shipping
Quantity:
In Stock: 17
Last Updated: Feb 26, 2026
No Sales Tax except these states
, PO and Wire.

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave OR1000PFCLCD provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring PFC power source compatibility. The OR1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1000PFCLCD comes with a three-year warranty and a $200,000 Connected Equipment Guarantee.

More from the Manufacturer

Main Specification
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OR1000PFCLCD
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series PFC Sinewave UPS
Product Model OR1000PFCLCD
Product Name OR1000PFCLCD PFC Sinewave UPS Systems
Product Type Line-interactive UPS
Technical Information
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Cord Length 6 ft
Power Description
Load Capacity (VA) 1000 VA
Load Capacity (Watt) 700 W
Input Voltage 120 V AC
Output Voltage 120 V AC
Battery Information
Backup/Run Time (Full Load) 6 Minute
Typical Battery Recharge Time 8 Hour
Hot Swappable Yes
Physical Characteristics
Height 6.4"
Width 5.4"
Depth 13.8"
Form Factor Mini-tower
Weight (Approximate) 24.70 lb
Miscellaneous
Package Contents
  • PFC Sine Wave OR1000PFCLCD mini-tower 1000VA 700W
  • User Manual
  • USB Cable
  • PowerPanel Business Edition Software Download Card
Additional Information
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • UPS Topology : Line Interactive
  • Battery Quantity : 2
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB1290X2A
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 6 min
  • Runtime at Half Load : 16 min
  • Typical Recharge Time : 8 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 13.72 x 16.26 x 35.05 (cm)
  • Physical Dimensions - (WxHxD) (in) : 5.4 x 6.4 x 13.8 (in)
  • Physical Dimensions - (WxHxD) (mm) : 137 x 163 x 351 (mm)
  • Weight (kg) : 11.2
  • Weight (lb) : 24.7
  • Shipping Dimensions - (WxHxD) (cm) : 25.91 x 28.19 x 47.63 (cm)
  • Shipping - Dimensions (WxHxD, in) : 10.2 x 11.1 x 18.75 (in)
  • Shipping - Dimensions (WxHxD, mm) : 259.08 x 281.94 x 476.25 (mm)
  • Shipping - Weight (kg) : 8.5
  • Shipping - Weight (lb) : 18.75
  • Circuit Breaker : 15 A
  • Cord Length : 6 ft (1.8 m)
  • Input Frequency Range : 47 Hz - 63 Hz
  • Input Plug Type : NEMA 5-15P
  • Input Voltage Range : 78 VAC - 142 VAC
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Straight
  • Automatic Voltage Regulation : Single Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 50/60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 8
  • Outlets - Total : 8
  • Outlet Type COMPUTED : 8 - NEMA 5-15R
  • Output Power Factor : 0.7
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • Under/Over-Voltage Correction : +18%
  • USB Charge Port : No
  • VA : 1000 VA
  • Watts : 700 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Surge Suppression (Joules) : 1030 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Surge Suppression (Joules) : 1030 J
  • Audible Alarms : Battery Mode
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Serial
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Mini-Tower
  • Material of Construction : Metal
  • Operating Elevation : 0 - 50000 ft (0 - 15239 m)
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 9843 ft (0 - 3000 m)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778 4th Ed.
  • CEG Amount : $200000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U2A
  • Product Warranty : 3 Year Limited Warranty
    		•
    Energy Star No
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 3 Year
