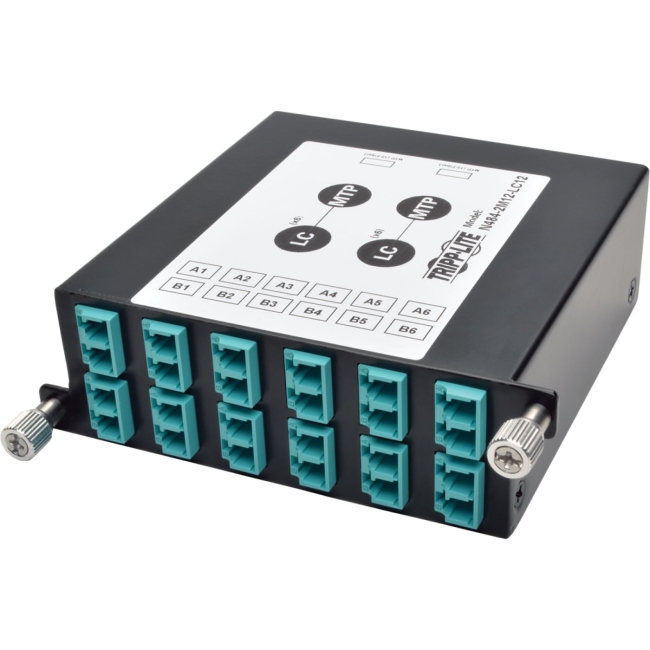

Tripp Lite's N484-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 40GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with (x2) 12-Fiber MTP/MPO cables, breaking out to (x12) LC Duplex fiber connections. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N844-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
Main Specification
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N4842M12LC12
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
N484-2M12-LC12
Product Name
40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber MTP/MPO to ( x12 ) LC Duplex
Product Type
Network Patch Panel
Interfaces/Ports
Total Number of Ports
14
Number of RJ-11 Ports
14
Number of LC Ports
12
LC Port Type
Duplex
Number of MT Ports
2
Physical Characteristics
Color Family
Black
Product Color
Black
Height
1.4"
Width
4.4"
Depth
3.8"
Weight (Approximate)
11.20 oz
Miscellaneous
Package Contents
40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber MTP/MPO to ( x12 ) LC Duplex
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
