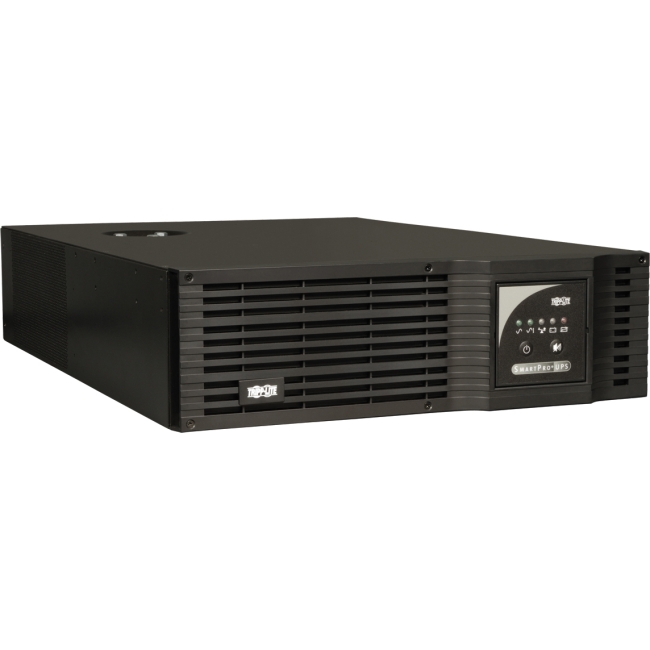

Eaton Tripp Lite SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS

Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SMART5000TEL3U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SMART5000TEL3U
Product Name	SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA 5-15R
Receptacle Type	NEMA L6-20R
Receptacle Type	NEMA L6-30R
Receptacle Detail	2 x NEMA 5-15R
Receptacle Detail	1 x NEMA L6-30R
Receptacle Detail	2 x NEMA L6-20R
Emergency Power OFF	Yes
Transfer Time	8 ms
Power Description
Load Capacity (VA)	5000 VA
Load Capacity (Watt)	3750 W
Input Voltage	208 V AC
Input Current	24 A
Output Voltage	208 V AC
Management
Network Management	SNMP Manageable
Interfaces/Ports
Modem (RJ-11)	Yes
USB	Yes
Battery Information
Backup/Run Time (Full Load)	10 Minute
Backup/Run Time (Half Load)	24 Minute
Typical Battery Recharge Time	4 Hour
Hot Swappable	Yes
Physical Characteristics
Height	5.3"
Width	17.5"
Depth	25"
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	143.30 lb
Miscellaneous
Package Contents	Smart Pro 5000TEL3U UPS SMART5000TEL3U UPS System PowerAlert Software and cabling Mounting hardware Warranty information Instruction manual
Additional Information	Ideal in rackmount or tower installations for centralized UPS protection of critical 208V equipment in server rooms, internetworking closets and telecommunications systems. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems Switches: Includes 2 front panel mounted push button switches for system enable, self-test and alarm cancel functions
Certifications & Standards	UL1778 (USA), CSA (Canada), FCC Class A (Emissions)
Software Included	PowerAlert Software
Country of Origin	Taiwan
Warranty
Limited Warranty	2 Year

General Information
Power Rating	-
Output Voltage Rating	-
Number of Outputs	-
Runtime-Full Load	-
Runtime-Half Load	-

Main Specifications

Product Description	Tripp Lite SmartPro 5000TEL3U - UPS - 5000 VA - UPS battery
Device Type	UPS
Form Factor	Rack-mountable 3 U
Dimensions (WxDxH)	17.5 in x 22.5 in x 5.2 in
Weight	118.2 lbs
Input Voltage	AC 208/240 V
Output Voltage	AC 120/208 V + 20% / - 6% ( 60 Hz )
Power Provided	5000 VA
Output connector(s)	5 x power NEMA 5-15, power NEMA L6-30, power NEMA L6-20
Battery	UPS battery
Run Time (Up To)	10 min at full load
Manufacturer Warranty	2 years warranty

General
Device Type	UPS
Form Factor	Rack-mountable
Height (Rack Units)	3 U
Width	17.5 in
Depth	22.5 in
Height	5.2 in
Weight	118.2 lbs
Power Device
UPS Technology	Line interactive
Input Voltage	AC 208/240 V
Frequency Required	60 Hz
Input Connector(s)	1 x power NEMA L6-30
Output Voltage	AC 120/208 V + 20% / - 6% ( 60 Hz )
Output connector(s)	5 x power NEMA 5-15, power NEMA L6-30, power NEMA L6-20
Power Output Connectors Details	1 x power NEMA L6-30 2 x power NEMA L6-20 2 x power NEMA 5-15
Power Provided	5000 VA
Output Waveform	Sinewave
Circuit Protection	Circuit breaker
Battery
Type	UPS battery
Run Time (Up To)	10 min at full load
Expansion / Connectivity
Interfaces	2 x serial - 9 pin D-Sub (DB-9) 2 x USB - 4 pin USB Type B 1 x remote control - RJ-11
Expansion Slots Total (Free)	1 ( 1 ) x expansion slot
Miscellaneous
Cables Included	2 x serial cable 2 x USB cable 1 x power cable - 10 ft
Rack Mounting Kit	Included
Equipment Protection Value	250000 US Dollars
Compliant Standards	FCC Class A certified, cUL, UL 1778
Software / System Requirements
Software Included	Drivers & Utilities, TrippLite PowerAlert
Manufacturer Warranty
Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years
