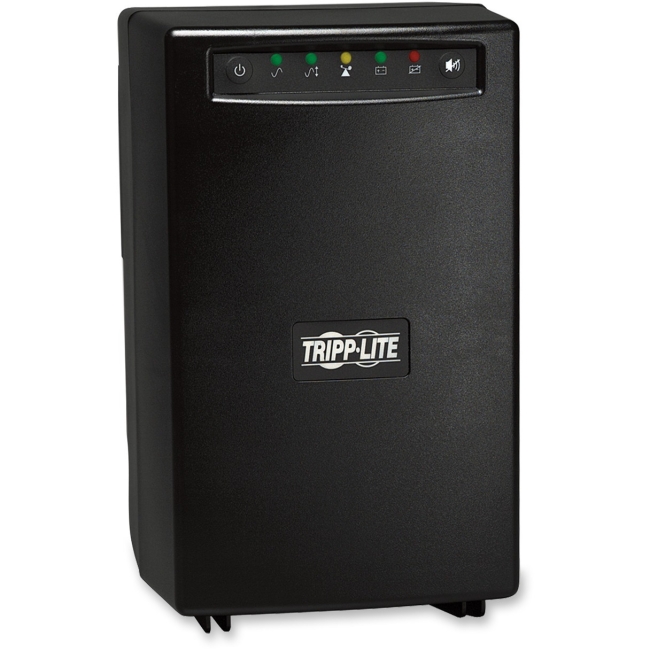

SMART1500 Tripp Lite SmartPro 1500VA UPS

The SMART1500 SmartPro 120V 1.5kVA 980W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up point-of-sale applications, VoIP systems and small business networks, the SMART1500 switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Featuring six NEMA 5-15R outlets (one switchable) and a six-foot power cord with 120V NEMA 5-15P input, the SMART1500 has an internal battery that provides 20 minutes of support at half load and seven minutes at full load. Front-panel LEDs indicate line power, battery power, overload, voltage regulation and battery status. An alarm sounds to indicate power failure, overload or a low battery.

Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 75V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 480-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's PowerAlert software (available via free download), the SMART1500 enables safe unattended system shutdown and file saves in case of a prolonged power failure

Protects Mission-Critical Equipment

• Provides fully regulated AC output for point-of-sale applications, VoIP systems and small business networks
• Audible alarm signals loss of utility power, overload or low battery
• 6 NEMA 5-15R outlets
• 6 ft. power cord with 120V NEMA 5-15P input
• 480-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 20 min. and full load up to 7 min.
• Internal batteries designed for hot-swap field replacement
• 96% line-power efficiency rating saves money in energy costs
• Cold-start capability enables turn-on in battery mode during blackouts

Load Bank with Switchable Outlet

• Can control one outlet remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 75V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

LED Indicators

• Front-panel LEDs indicate line power, battery power, overload, voltage regulation and battery status

Communications Ports

• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert

Small-Footprint Tower Housing

• Mounts on wall with optional UPSWM accessory

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SMART1500
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Name	SmartPro 1500VA UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Cord Length	6 ft
Transfer Time	4 ms
Power Description
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	980 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Surge Energy Rating	480 J
Management
Network Management	SNMP Manageable
Alarm	Overload
Alarm	Low Battery
Alarm	On Battery
Controls/Indicators
Status Indicators	Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Interfaces/Ports
USB	Yes
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7 Minute
Backup/Run Time (Half Load)	20 Minute
Battery Life	6 Year
Hot Swappable	Yes
Typical Battery Recharge Time	4 Hour
Environmental Conditions
Maximum Operating Temperature	122°F (50°C)
Physical Characteristics
Product Color	Black
Height	12.8"
Width	7.5"
Depth	9"
Form Factor	Tower
Weight (Approximate)	38.40 lb
Miscellaneous
Package Contents	UPS System USB and DB9 monitoring cables PowerAlert unattended shutdown and UPS/Power monitoring software CD Instruction manual with warranty information
Software Included	PowerAlert Software
Country of Origin	China
Warranty
Limited Warranty	3 Year

General Information
Power Rating	1500 VA
Output Voltage Rating	120 V
Number of Outputs	6
Runtime-Full Load	7 min
Runtime-Half Load	20 min

Tripp Lite's SMART 1500 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. 1500VA / 980 watt power handling capability supports a variety of networking, telecom and various other application types, including the support of multiple network workstations. Includes a total of 6 outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or to automatically shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Supports SNMP with optional SNMPWEBSOLO external adapter. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with optional UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower housing uses less than 66 square inches of floor or desktop space. Two year warranty with $250,000 connected equipment insurance (USA & Canada Only).

1500VA / 980 watt power handling capability supports a variety of networking, telecom and various other application types

Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime

Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures

Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V

Includes a total of 6 NEMA5-15R outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or automatically shed less significant loads to extend battery runtime for more critical equipment

Includes 1 USB and 1 DB9 monitoring port for remote monitoring of UPS status and site power conditions

Communications ports enable safe unattended shutdown without data loss during extended power failures

Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity

Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment

PowerAlert UPS monitoring and unattended shutdown software with complete cabling included

Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again

Supports SNMP in large network applications with optional SNMPWEBSOLO external adapter

Notification of system status via 5 LEDs and multi-function audible alarms

Wall mountable with UPSWM wallmount bracket

Attractive small footprint beige tower housing uses less than 66 square inches

Hot-swappable / user replaceable batteries allow on-site battery replacement

Cold start capability enables UPS turn-on in battery mode during blackout conditions

UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed

$250,000 Ultimate Lifetime Insurance (USA and Canada only)

2 year manufacturers product warranty with $250,000 connected equipment insurance (USA & Canada Only)
