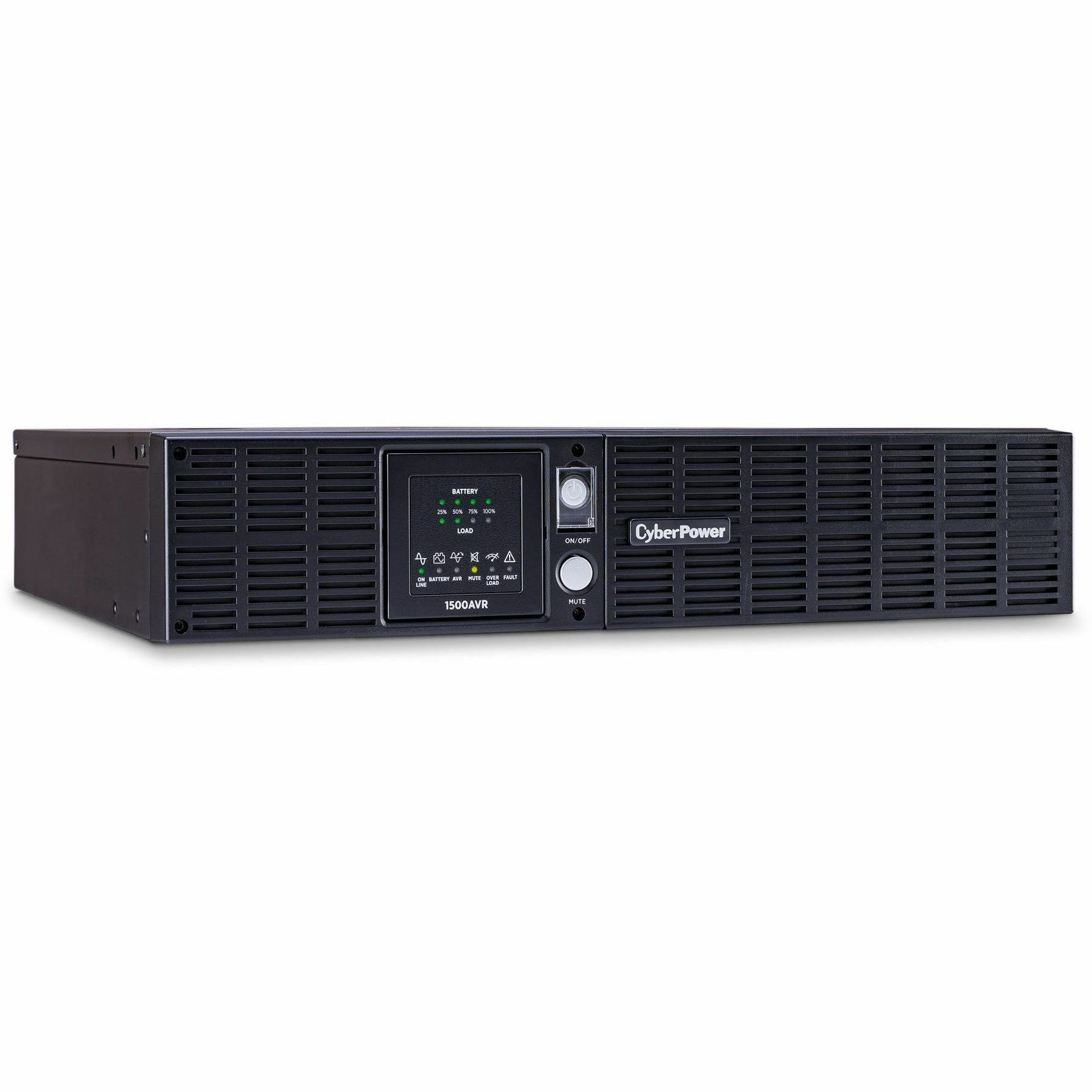

A rack/tower UPS with line interactive topology, the CyberPower Smart App CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics. - Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. - Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. - Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations. - Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output. - Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation. - LED Status Lights
Indicate Power On, Wiring Fault. - PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Download tab. - Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. - Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
More from the Manufacturer
Main Specification
General Information |
Manufacturer |
CyberPower Systems, Inc |
Manufacturer Part Number |
CPS1500AVR |
Manufacturer Website Address |
https://www.cyberpowersystems.com/ |
Brand Name |
CyberPower |
Product Series |
Smart App LCD UPS |
Product Model |
CPS1500AVR |
Product Name |
Smart App AVR CPS1500AVR 1500VA UPS |
Product Type |
Line-interactive UPS |
Technical Information |
AVR |
Yes |
Plug/Connector Type |
NEMA 5-15P |
Receptacle Type |
NEMA 5-15R |
Receptacle Detail |
8 x NEMA 5-15R |
Number of Battery & Surge Outlets |
8 |
Transfer Time |
4 ms |
Dataline Protection |
RJ-11 |
Dataline Protection |
Coax |
Dataline Protection |
RJ-45 |
Protection Type |
Surge |
Protection Type |
Spike |
Overload Protection |
Yes |
EMI/RFI Noise Filter |
Yes |
Power Description |
Load Capacity (VA) |
1500 VA |
Input Voltage |
120 V AC |
Output Voltage |
120 V AC |
Waveform Type |
Simulated Sine Wave |
Surge Energy Rating |
1840 J |
Management |
Network Management |
SNMP Manageable |
Controls/Indicators |
Status Indicators |
- Load Level
- Battery Level
- Power On
- Online
- Using Battery
- Replace Battery
- AVR
- Mute
- Overload
- Fault
- Wiring Fault
|
Interfaces/Ports |
Serial Port |
Yes |
Network (RJ-45) |
Yes |
USB |
Yes |
USB (HID Compliant) Port |
Yes |
Battery Information |
Number of Batteries |
2 |
Battery Characteristics |
Maintenance-free |
Battery Chemistry |
Lead Acid |
Backup/Run Time (Full Load) |
7 Minute |
Backup/Run Time (Half Load) |
18 Minute |
Typical Battery Recharge Time |
8 Hour |
Environmental Conditions |
Maximum Operating Temperature |
104°F (40°C) |
Physical Characteristics |
Product Color |
Black |
Form Factor |
Rack/Tower |
Rack Height |
2U |
Height |
3.5" |
Width |
17.3" |
Depth |
15.8" |
Weight (Approximate) |
50.50 lb |
Miscellaneous |
Package Contents |
- Smart App AVR CPS1500AVR 1500VA UPS
- Rack Mount Kit
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Serial-to-USB Adapter
|
Software Included |
PowerPanel Business Edition |
Energy Star |
No |
Environmentally Friendly |
Yes |
Country of Origin |
China |
Warranty |
Limited Warranty |
3 Year |
Additional Warranty Information |
CyberPower stands behind its products by offering an industry leading 3-year warranty CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge Connected Equipment Guarantee of $300,000 |

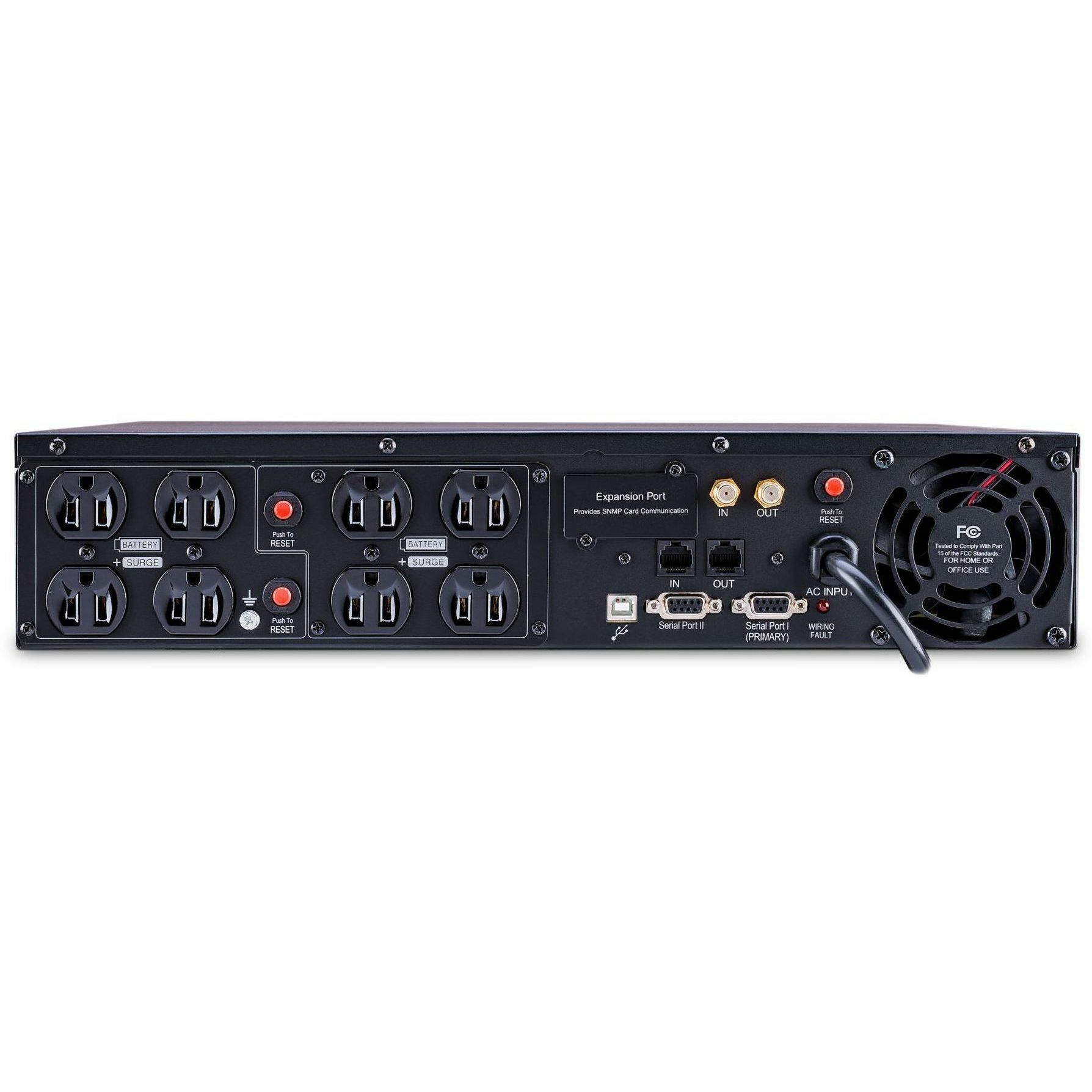

The 1500AVR model has an innovative form that allows the unit to be used as either a free-standing unit, or to be rack mounted. The unit features 2 built in serial ports to allow for control of two computers during a power failure. This model features Automatic Voltage Regulation to insure that your connected equipment receives only regulated, consistent power. The battery-pack has four (4) 7AH batteries for extended runtime and is hot-swappable to minimize downtime. This model is ideal for corporate servers, departmental servers, Unix servers, as well as mission-critical network components.
Features:
On/Off Switch
Test Switch
Battery Indicator/Load Indicators
Power On Indicator
AVR Indicator
Using Battery Indicator
Wiring Fault Indicator
Outlets designed for AC Adapters
Battery Back-up/Surge-protected Outlets
Two Built-in Serial Ports
RJ-11/RJ-45 Communication Protection Ports
10' Heavy-duty Power Cord
Re-settable Circuit Breakers
