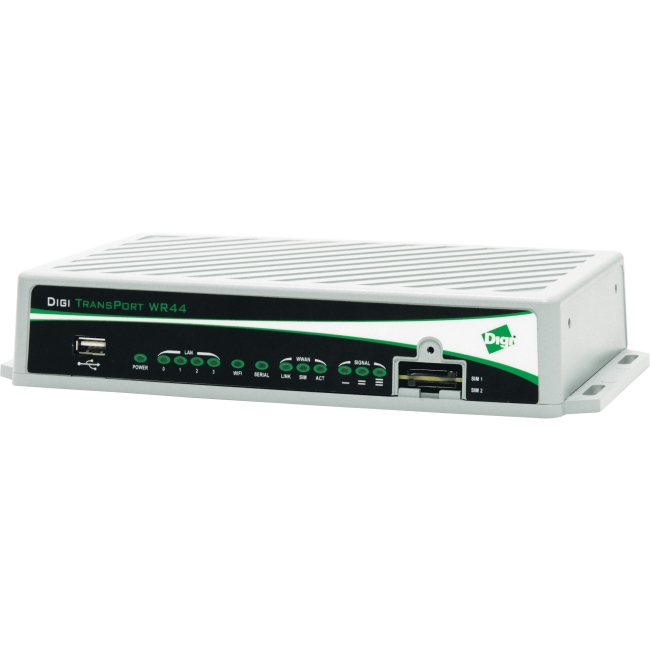

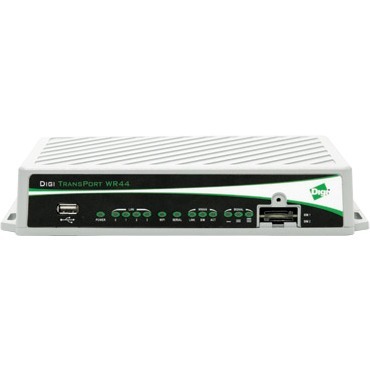

DIGI WR44-L500-CE1-RD TransPort WR44R - LTE North America Multi-Carrier (700/850/1700(AWS)/1900 MHz), No WiFi, Enterprise Software Package, 5 VPN Tunnels, Extended Temperature, Rugged Enclosure, DC Power Cable, Antennas

The Digi TransPort WR44 R is a rugged, all-in-one 3G/4G mobile communications solution with true enterprise class routing, security and firewall. Featuring a heavy-duty cast aluminum enclosure, the Digi TransPort WR44 R offers a flexible interface design with an optional integrated Wi-Fi access point (with multi SSID), USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including multiple serial ports (async or sync), GPS, GPS/CAN/IO or I/O only modules.

These routers are ideal for transportation and mobile applications. Flexible power options include 9-36 VDC locking barrel or automotive Molex connectors for direct integration into vehicle applications. Also ideal for mobile applications is the cellular to Wi-Fi autoswitch feature, which uses the highest speed/lowest cost WAN network available.

General Information
Manufacturer	Digi International
Manufacturer Part Number	WR44-L500-CE1-RD
Manufacturer Website Address	http://www.digi.com
Brand Name	Digi
Product Line	TransPort
Product Series	WR
Product Model	WR44 R
Product Name	Transport WR44 R Wireless Router
Product Type	Wireless Router
Wireless Specifications
Broadband Transmission Technology	Cellular
ISM Band	No
UNII Band	No
Cellular Generation	4G
Cellular Network Supported	LTE 850
Cellular Network Supported	WCDMA 1900
Cellular Network Supported	LTE 1900
Cellular Network Supported	LTE 1700
Cellular Network Supported	WCDMA 1800
Cellular Network Supported	CDMA 800
Cellular Network Supported	WCDMA 1700
Cellular Network Supported	GSM 900
Cellular Network Supported	GSM 850
Cellular Network Supported	LTE 700
Cellular Network Supported	CDMA 1900
Cellular Network Supported	WCDMA 2100
Cellular Data Connectivity Technology	GPRS
Cellular Data Connectivity Technology	EDGE
Cellular Data Connectivity Technology	LTE
Total Number of Antennas	2
Number of External Antennas	2
Interfaces/Ports
Number of Network (RJ-45) Ports	4
Serial	Yes
USB	Yes
Powerline	No
PoE (RJ-45) Port	No
Management Port	Yes
Number of Broadband (RJ-45) Ports	3
I/O Expansions
Total Number of Expansion Slots	3
Expansion Slot Type	SIM Card
Network & Communication
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX
VPN Supported	Yes
Management & Protocols
Management	DHCP SNMP v1/2c/3 VLAN Command Line Interface Web-based Management Telnet Digi Remote Manager SMS Management
Security Features	NAT IP Address Filtering IP Pass-Through NAPT IP Port Forwarding
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Power Source	AC Supply
Physical Characteristics
Form Factor	Desktop
Form Factor	Wall Mountable
Form Factor	Rail-mountable
Height	1.9"
Width	10"
Depth	5.5"
Weight (Approximate)	2.40 lb
Miscellaneous
Package Contents	TransPort WR44 R Wireless Router Ethernet Cable Installation Guide Cellular Antennas Power Supply
Certifications & Standards	IEEE Standards: 802.3 Safety: UL 60950 CSA 22.2 No. 60950 EN60950 Emissions/Immunity: CE FCC Part 15 Class B AS/NZS CISPR 22 EN55024 EN55022 Class B (WR44 models with VDSL are Class A) Industry: E-Marking (72/245/EEC, 2009/19/EC) Automotive Non-Immunity (2004/104/ EC, 2005/49/EC, 2005/83/EC, 2006/28/EC) ISO7637-2 Class C EN 300 019-2-5 (Specification for environmental tests for ground vehicle installations - covers temperature, humidity, vibration and shock)
Environmentally Friendly	Yes
Warranty
Limited Warranty	3 Year
