KT-ES424X6+B Sans Digital EliteSTOR ES424X6+B DAS Array - 24 x HDD Supported - 72 TB Supported HDD Capacity - 24 x SSD Supported - 72 TB Supported SSD Capacity
Mfg Part Number: KT-ES424X6+B , Item #: 1713121
, PO and Wire.

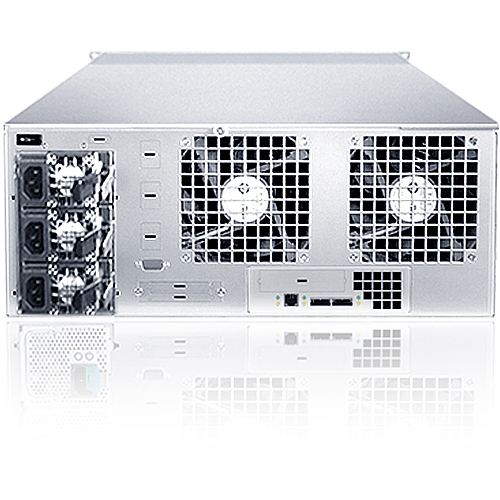

The EliteSTOR ES424X6+B is a 4U SAS 6G JBOD rackmount for high capacity storage solution. Utilizing the latest 6G SAS expander technology, the ES424X6+B provides over 24 Gb/s or 2400MB/s of bandwidth to fulfill the most demanding application. The ES424X6+B supports SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES424X6+B supports up to 24 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES424X6+B is capable of delivering over 1700MB/s in read and 1500MB/s write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES424X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.
| General Information | |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | KT-ES424X6+B |
| Manufacturer Website Address | http://www.sansdigital.com |
| Brand Name | Sans Digital |
| Product Line | EliteSTOR |
| Product Model | ES424X6+B |
| Product Name | EliteSTOR ES424X6+B DAS Array |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 24 |
| Total Hard Drive Capacity Supported | 72 TB |
| Number of Solid State Drive Supported | 24 |
| Total Solid State Drive Capacity Supported | 72 TB |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Number of 3.5" Bays | 24 |
| Controllers | |
| RAID Supported | Yes |
| RAID Levels | JBOD |
| Interfaces/Ports | |
| Drive Interface | 6Gb/s SAS |
| Drive Interface | Serial ATA/600 |
| Host Interface | Mini-SAS |
| Power Description | |
| Number of Power Supplies Installed | 3 |
| Maximum Power Supply Wattage | 650 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Height | 7" |
| Width | 19" |
| Depth | 23" |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Weight (Approximate) | 54 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
