TYAN

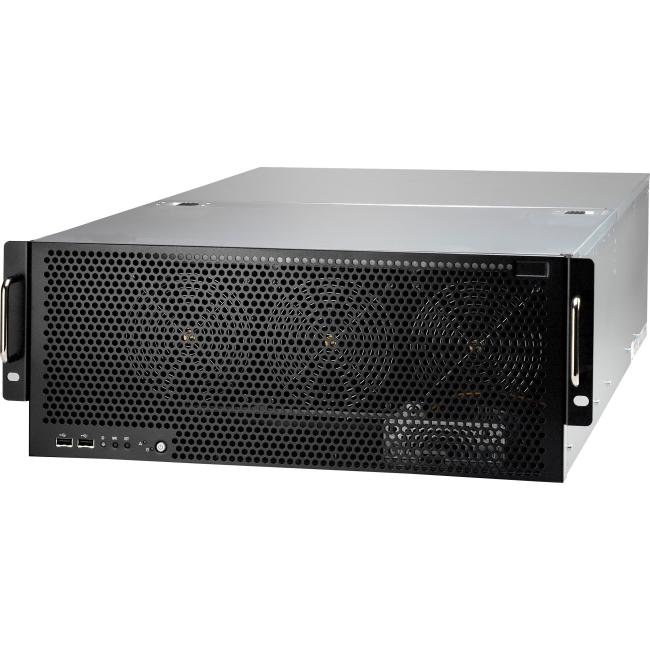

Tyan FT77B7015 Barebone System - 4U Rack-mountable - Intel 5520 Chipset - Socket B LGA-1366 - 2 x Processor Support
Mfg Part Number: FT77B7015 , Item #: 1710633
Image may not reflect the actual item.
Price: $4,496.63
+ Free Shipping
Quantity:
More to Come
Last Updated: Dec 13, 2025
No Sales Tax except these states
, PO and Wire.
Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | FT77B7015 |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Tyan |
| Product Series | FT77 |
| Product Model | FT77B7015 |
| Product Name | FT77B7015 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5520 |
| Memory | |
| Maximum Memory Supported | 144 GB |
| Memory Technology | DDR3L SDRAM |
| Memory Standard | DDR3L-1333/PC3-10600 |
| Total Number of Memory Slots | 18 |
| Controllers | |
| Controller Type | Serial ATA/300 |
| Display & Graphics | |
| Graphics Controller Model | AST2050 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 13 |
| Number of PCI Slots | 1 |
| Number of PCI Express x16 Slots | 10 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 3 |
| Maximum Power Supply Wattage | 2400 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 17.2" |
| Depth | 30.3" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
