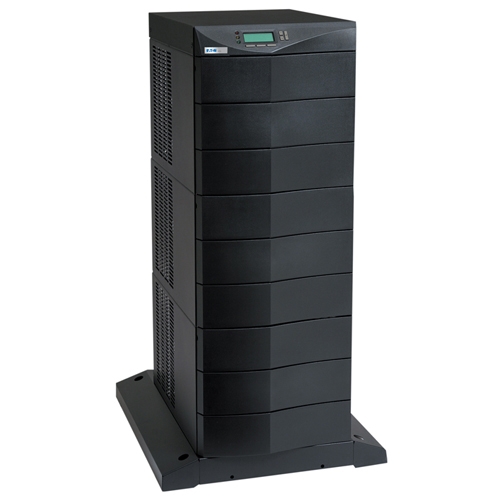

PW6S3K-LPD Eaton Powerware PW9170+ 3kVA to 9 kVA Tower UPS
Mfg Part Number: PW6S3K-LPD , Item #: 166317
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $4,986.69
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 24, 2025
No Sales Tax except these states
, PO and Wire.
With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and power quality of any Rackmount UPS power supply in the 3-18 kVA range.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PW6S3K-LPD |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Eaton |
| Product Name | Powerware PW9170+ 3kVA to 9 kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 14-50P |
| Receptacle Type | NEMA L14-30R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L14-30R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Power Description | |
| Load Capacity (VA) | 9000 VA |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 200 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 127 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Interfaces/Ports | |

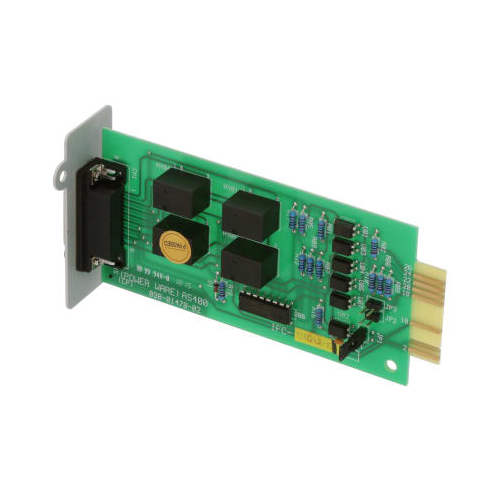

| Modular Slots | 2 x Communications Slot |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 33.3" |
| Width | 17" |
| Depth | 26" |
| Weight (Approximate) | 192 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
Features:
N+X redundancy for both power and logic eliminates system level single-point-of-failure
Easily scalable to adapt changing IT environments by simply adding power and /or battery modules
True double conversion online design
Advanced Battery Management (ABM®) doubles battery service life
Universal components fit in any order without affecting UPS operation
Complete offering of power management software included to insure data integrity
PW6S6K-LPD Includes:
(1) 6 slot enclosure
(2) power module
(4) battery module
(1) caster kit
N+X redundancy for both power and logic eliminates system level single-point-of-failure
Easily scalable to adapt changing IT environments by simply adding power and /or battery modules
True double conversion online design
Advanced Battery Management (ABM®) doubles battery service life
Universal components fit in any order without affecting UPS operation
Complete offering of power management software included to insure data integrity
PW6S6K-LPD Includes:
(1) 6 slot enclosure
(2) power module
(4) battery module
(1) caster kit
