Moxa EDS-G516E-4GSFP-T Managed full Gigabit Ethernet switch with 12 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -40°C to 75°C operating temperature

MOXA Major Lines
Mfg Part Number:  EDS-G516E-4GSFP-T

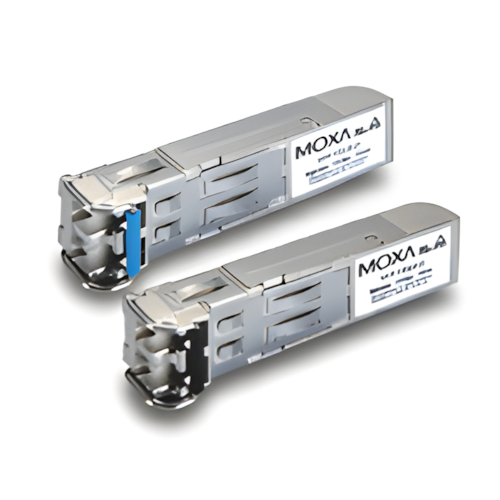

Image may not reflect the actual item.
Price: $2,184.26
Quantity:
In Stock: 17
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:

Certifications: ABSATEXEN 50121-4EN 61000-6-2/EN 61000-6-4FCC Part 15BIEC 61850-3/IEEE1613IEEE1613NEMA TS2RoHSUL508UL508 CID2

Product Category
Product Category Managed Switch
Mechanical
Dimensions: WxHxD (mm) 79.2mm x 135mm x 137mm
Mounting Din Rail
IP level IP30
Enclosure Metal
Data Rate and Number of Ports
Number of Ports 16
Fast Ethernet, 10/100 Mbps -
Gigabit, 10/100/1000 Mbps 12
Interface
Interface Type 10/100/1000 Mbps RJ45, 10/100/100 Mbps SFP Combo
Fiber connector -
PoE -
M12 Connector -
SFP
Digital I/O/Relay Yes
Console -
Bypass -
Modular Design -
Available Modular -
Power
Power Input Type Dual DC/ DC Terminal Block
Operating Supply Voltage 24 VDC
Power Consumption 0.24 A @ 24 V
Reliability
Operating Temperature -40C to 75C
Redundancy and Backup Options
Redundancy Technology Yes
STP/RSTP/PSTP/MSTP Yes
Automatic Backup Configurator Yes
Certification
Certification
UL 508 (Industrial Control)
EN 50155 (Rail Industry)
EN 50121-4 (Rail Industry)
EN 50121-3-2 (Rail Industry)
NEMA TS2 (ITS)
IEC 61850-3 (Power Industry)
IEEE 1613 (Power Industry)
IEEE 1588PTP (Power Industry)
DNV.GL (Marine)
ABS.LR.NK (Marine)
C1D2 (Oil & Gas)
ATEX (Oil & Gas)
Network Management and Control
Layer Level Switching L2
Modbus/TCP Yes
Ethernet/IP Yes
PROFINET Yes
SNMP/RMON Yes
LLDP Yes
DHCP Yes
IGMP Snooping/GMRP Yes
QoS Yes
VLAN 802.1Q Yes
IEEE 802.1X Yes
LACP (802.3ad)
Port Lock Yes
IPv6 Yes
