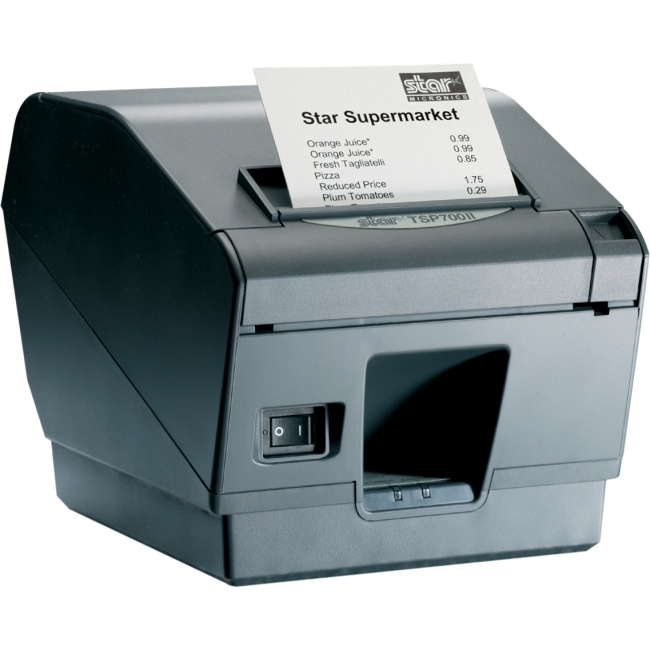

Featuring a fast print speed, a multitude of connectivity options, and a splash- and dust-proof design, the TSP743II is one of the industry's most powerful, reliable, and connected printers. Adaptable to any business, the printer may also be vertically mounted and includes black mark label support.
General Information | |
Manufacturer | Star Micronics, Inc |
Manufacturer Part Number | 39442511 |
Manufacturer Website Address | http://www.starmicronics.com |
Brand Name | Star Micronics |
Product Series | TSP700II |
Product Model | TSP743IIU-24GRY |
Product Name | TSP743IIU-24GRY Receipt Printer |
Product Type | Direct Thermal Printer |
Technical Information | |
Recommended Use | Label/Receipt Print |
Print Color Capability | Monochrome |
Maximum Mono Print Speed | 9.84 in/s |
Maximum Print Resolution (dpi) | 406 x 203 |
Maximum Print Width | 3.15" |
Barcode Symbology Supported | QR Code |
Barcode Symbology Supported | PDF-417 |
Installation | Vertical |
Features | Splash Proof |
Features | Dust Proof |
Features | Vertical Printing |
Features | Horizontal Printing |
Memory | |
Flash Memory | 16 MB |
Interfaces/Ports | |
USB | Yes |
Cutter | |
Cutter | Yes |
Cutting Method | Automatic |
Cutter Life | 2000000 Cuts |
Media Types & Handling | |
Media Type | Coupon |
Media Type | Black Mark |
Media Type | Receipt |
Media Type | Label |
Media Sensor | Transmissive Media Sensor |
Media Sensor | Paper Low Sensor |
Media Sensor | Cover Open Sensor |
Media Sensor | Out Of Paper Sensor |
Media Thickness | 5.91 mil |
Maximum Roll Diameter | 3.94" |
Maximum Label Width | 3.25" |
Fonts & Emulation | |
Language Emulation | ESC/POS |
Power Description | |
Power Source | Power Adapter |
Input Voltage | 24 V DC |
Physical Characteristics | |
Form Factor | Wall Mount |
Product Color | Gray |
Height | 5.8" |
Width | 5.8" |
Depth | 8.4" |
Weight (Approximate) | 3.86 lb |
Miscellaneous | |
Package Contents |
|
Platform Supported | Mac |
Platform Supported | PC |
Certifications & Standards |
|
Energy Star | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
