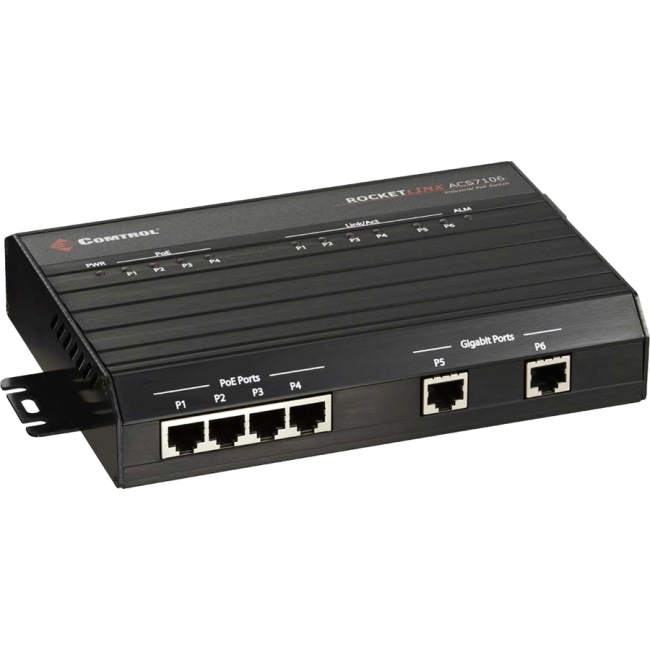

PEPPERL+FUCHS COMTROL INC(COMTROL) 32130-9 Comtrol RocketLinx ACS7106 Industrial Ethernet Switch
Mfg Part Number: 32130-9 , Item #: 1590299
Image may not reflect the actual item.
Price: $1,039.99
Quantity:
In Stock: 1
Last Updated: May 08, 2024
No Sales Tax except these states
, PO and Wire.
The Comtrol RocketLinx ACS7106 is a 6-port PoE Plus Ethernet switch purpose-built for delivering reliable power and data connections to access control and mobile surveillance applications. The ACS7106 switch features four 10/100BASE-TX PoE Plus ports for providing power and data to remote PDs (Powered Devices) such as access card readers and IP surveillance cameras, and two 10/100/1000BASE-TX uplink ports that assure maximum throughput for high bandwidth applications.
Housed in a durable aluminum enclosure and capable of operating in a wide environmental temperature range, the ACS7106 offers features not found in typical IT-grade switches, including enhanced reliability and ruggedness, voltage boost circuitry for 12/24VDC power connections, an alarm notification relay, and compliance with the stringent UL294B safety certification required by many cities for access control equipment.
Housed in a durable aluminum enclosure and capable of operating in a wide environmental temperature range, the ACS7106 offers features not found in typical IT-grade switches, including enhanced reliability and ruggedness, voltage boost circuitry for 12/24VDC power connections, an alarm notification relay, and compliance with the stringent UL294B safety certification required by many cities for access control equipment.
Main Specification
| General Information | |
| Manufacturer | Comtrol Corporation |
| Manufacturer Part Number | 32130-9 |
| Manufacturer Website Address | http://www.comtrol.com |
| Brand Name | Comtrol |
| Product Line | RocketLinx |
| Product Model | ACS7106 |
| Product Name | RocketLinx ACS7106 Industrial Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Uplink Port | Yes |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Panel-mountable |
| Height | 1.4" |
| Width | 7.4" |
| Depth | 5.4" |
| Weight (Approximate) | 1.26 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 5 Year |
