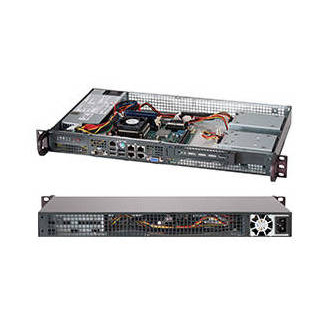

CSE-505-203B Supermicro SuperChassis 505-203B (Black)

1U SuperChassis 505

Supermicro's mini-sized SC505 1U chassis features a depth of only 9.8" with fan-less thermal design for client nodes, firewall applications, mail servers, web servers & other server applications. It supports a wide range of single processor based Micro ATX 9.6" x 9.6" motherboards as well as front side I/O access. In addition the SC503 is a perfect solution for home/office servers, with system noise level running at low 30 dB under the normal operation.

General Information
Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	CSE-505-203B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperChassis
Product Series	SC505
Product Model	SC505-203B
Product Name	SuperChassis 505-203B (Black)
Product Type	Server Case
Technical Information
Motherboard Supported	Mini ITX
Bays
Number of Internal 3.5" Bays	1
Number of Total Expansion Bays	1
I/O Expansions
Total Number of Expansion Slots	1
Power Description
Input Voltage	220 V AC
Input Voltage	110 V AC
Number of Power Supplies Supported	1
Number of Power Supplies Installed	1
Power Supply Wattage	200 W
Physical Characteristics
Color Family	Black
Product Color	Black
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.2"
Depth	9.8"
Weight (Approximate)	9.92 lb
Miscellaneous
Package Contents	SuperChassis 505-203B (Black) 1 x Front Control Cable Round 16pin to 16pin Ribbon 20inch (50cm) 1 x US power cord 18AWG 6ft, PBF (default for low watt) 1 x 1U SC505 top cover 1 x 1U 505 chassis base 1 x 1U I/O shield for X9/X10

Specifications

• Mfr Part Number: CSE-505-203B
• Case Type: 1U Rackmount (9.8" Depth)
• Color: Black
• M/B Type: Mini-ITX (6.75 x 6.75 inch)
• Processor Support: Single Processor
• Drive Bays: 1x 3.5" Internal Drive Bay (w/ 1x Half-height Half-length PCI Slot) or 2x 3.5" Internal Drive Bay or 2x 2.5" Internal Drive Bay (w/ 1x Full-height Half-length PCI Slot) or 4x 2.5" Internal Drive Bay
• Expansion Slots: 1x PCI Slot (Full-height, Half-length)
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat
  • I/O Ports: Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)
• Power Supply: 200W 80 PLUS Gold Certified Low Noise AC-DC Power Supply w/ PFC
• Dimensions (WxDxH): 17.2 x 9.8 x 1.7 inch / 437.0 x 249.0 x 43.0 mm
• Gross Weight: 10.0 lbs / 4.5 kg
• Chassis Only. CPU, MB, HD, memory and other parts are not included.
