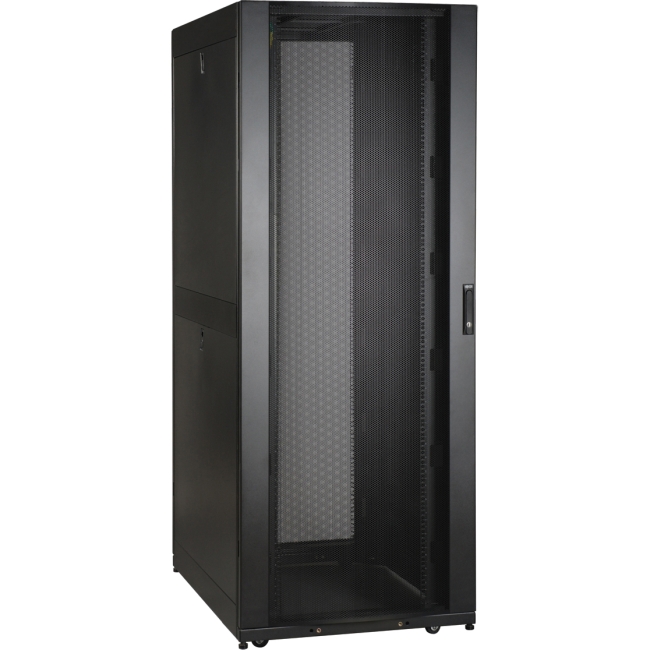

Tripp Lite SmartRack SR42UBWDVRT Rack Cabinet
Mfg Part Number: SR42UBWDVRT , Item #: 1528897
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
SR42UBWDVRT is a WIDE version of our standard 42U SmartRack Enclosure (750mm wide compared to the standard 600mm wide) and includes preinstalled SRCABLEVRT3. The SRCABLEVRT3 helps eliminate cable stress by organizing the cables within the enclosure. The vertical cable manager is 6-ft high and 3" wide.
The SR42UBWDVRT houses 3000lbs of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBWDVRT provides ultimate equipment safety. The side panels are half size for ease of removal and re-installation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBWDVRT meets all requirements toward PCI DSS compliance.
The top panel of the SR42UBWDVRT is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools.
All components of the SR42UBWDVRT are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR42UBWDVRT comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving enclosures over long distances.
The SR42UBWDVRT comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SR42UBWDVRT |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SR42UBWDVRT |
| Product Name | SmartRack SR42UBWDVRT Rack Cabinet |
| Product Type | Rack Cabinet |
| Physical Characteristics | |
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Static/Stationary Weight Capacity | 3000 lb |
| Height | 78.5" |
| Width | 29.5" |
| Depth | 43" |
| Rack Height | 42U |
| Rack Width | 19" |
| Weight (Approximate) | 315 lb |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Product | - |
| Type | - |
| Outside Width | - |
| Outside Height | - |
| Outside Depth | - |
| Panel Height | - |
| Panel Width | - |
Cable Management
Fan Trays
Fasteners
Tripp Lite Rack Enclosure Square Hole Hardware Kit (Includes 50 M5 screws and washers)
Tripp Lite Square Hole Hardware Kit (Includes 50 Pcs 12-24 Screws and Washers.)
Miscellaneous Kits
Mounting Kits
Panels
Rack Equipment
Wheels/Casters
