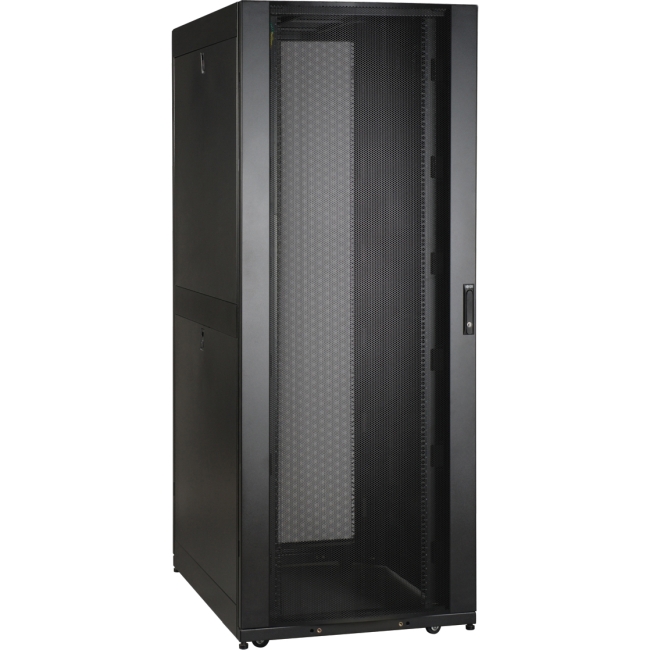

SR45UBWDSP1 Tripp Lite 45U Rack Enclosure Server Cabinet 30" Wide w/ Shock Pallet

Mfg Part Number:  SR45UBWDSP1

Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.

Image may not reflect the actual item.
Price: $2,146.92 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Apr 29, 2024
No Sales Tax except these states
, PO and Wire.

Wide version of our standard 45U SmartRack Enclosure but ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location the SR45UBWDSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers.

The SR45UBWDSP1 is 750mm wide (29.5") compared to the standard 600mm wide (23.6") This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.

The SR45UBWDSP1 houses 3000lbs of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 45 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

The top panel of the SR45UBWDSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools. The facilitate cable access, the SR45UBSP1 is open-bottom.

All components of the SR45UBWDSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

The SR45UBWDSP1 comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.

Main Specification
General Information
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number SR45UBWDSP1
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Line SmartRack
Product Model SR45UBWDSP1
Product Name SmartRack SR45UBWDSP1 Rack Cabinet
Product Type Rack Cabinet
Physical Characteristics
Dynamic/Rolling Weight Capacity 2250 lb
Static/Stationary Weight Capacity 3000 lb
Height 83.8"
Width 29.5"
Depth 43"
Rack Height 45U
Rack Width 19"
Weight (Approximate) 339.51 lb
Miscellaneous
Package Contents
  • SmartRack SR45UBWDSP1 Rack Cabinet
  • Mounting Hardware
  • 50 x M6 Cage Nuts
  • 50 x M6 Screws
  • 50 x M6 Washers
  • Stabilizing Bracket
  • 4 x Side Panels
  • 4 x Side Panel Locks
  • Owner's Manual
  • 2 x Door and Side Panel Keys
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
