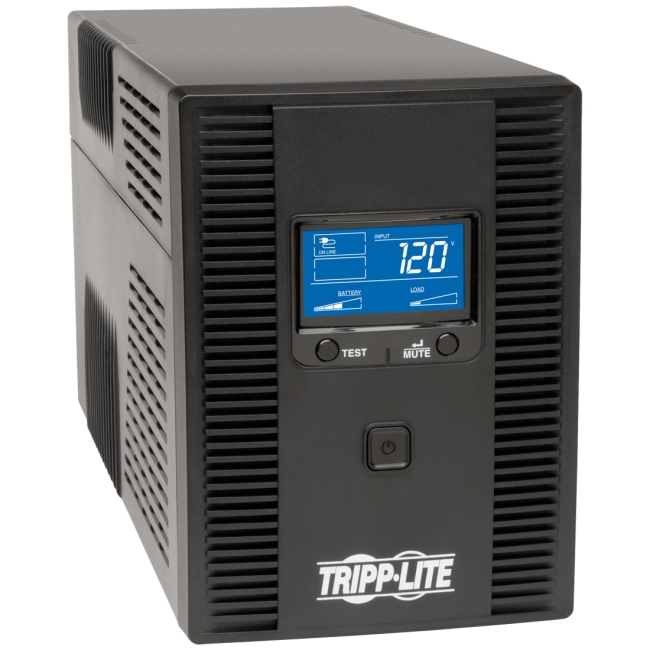

The SMART1500LCDT SmartPro LCD 120V, 1500VA/900W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
While all ten NEMA 5-15R outlets protect against surges, five outlets also provide up to 90 minutes of UPS battery support for a basic desktop PC and LCD monitor and up to 10 minutes of support at half load (450W).
Automatic voltage regulation (AVR) corrects undervoltages as low as 92V and overvoltages as high as 150V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 650-joule surge suppression rating protects your equipment from harmful power surges.
NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large LCD screen shows real-time input voltage, overload, AVR, remaining battery runtime and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's PowerAlert software (available via free download), SMART1500LCDT enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Reliable Battery Backup
- Provides 1500VA/900W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
- Supports basic desktop computer and LCD monitor up to 90 minutes during power outage
- Supports 50% load (450W) up to 10 minutes
- Audible alarm indicates loss of utility power or low battery
Optimized Outlets
- 5 NEMA 5-15R outlets deliver battery backup for devices that require constant power
- All 10 outlets protect against surges or spikes that can harm equipment or data
- NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket
Automatic Voltage Regulation (AVR)
- Corrects undervoltages as low as 92V and overvoltages as high as 150V without drawing battery backup power
LCD Status Screen
- Large LCD screen shows real-time input voltage, overload, AVR and battery statuses
- Automatically displays remaining battery runtime in minutes during power outage
AC Line, Tel/DSL and Ethernet Surge Suppression
- Surge suppression rating of 650 joules protects connected equipment and data from harmful power surges
- Tel/DSL RJ11 jacks protect standard dial-up/DSL/Ethernet phone connection
- Coaxial jacks protect CATV, broadband cable internet, satellite or broadcast antenna connection
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment's performance
More from the Manufacturer
Main Specification
General Information |
Manufacturer |
Tripp Lite by Eaton |
Manufacturer Part Number |
SMART1500LCDT |
Manufacturer Website Address |
https://tripplite.eaton.com/ |
Brand Name |
Tripp Lite by Eaton |
Product Line |
SmartPro |
Product Model |
SMART1500LCDT |
Product Name |
SMART1500LCDT UPS |
Product Type |
Line-interactive UPS |
Technical Information |
Plug/Connector Type |
NEMA 5-15P |
Receptacle Type |
NEMA 5-15R |
Receptacle Detail |
5 x NEMA 5-15R |
Cord Length |
6 ft |
Transfer Time |
2 ms |
Power Description |
Load Capacity (VA) |
1500 VA |
Load Capacity (Watt) |
900 W |
Input Voltage |
120 V AC |
Output Voltage |
120 V AC |
Waveform Type |
Pulse-width Modulated Sine Wave |
Surge Energy Rating |
480 J |
Interfaces/Ports |
USB |
Yes |
Battery Information |
Backup/Run Time (Full Load) |
2.30 Minute |
Backup/Run Time (Half Load) |
10 Minute |
Typical Battery Recharge Time |
8 Hour |
Environmental Conditions |
Maximum Operating Temperature |
122°F (50°C) |
Physical Characteristics |
Product Color |
Black |
Height |
8" |
Width |
5.8" |
Depth |
15.4" |
Form Factor |
Tower |
Weight (Approximate) |
29.40 lb |
Miscellaneous |
Package Contents |
- SMART1500LCDT UPS
- USB Cable
- Manual with Warranty Information
|
Country of Origin |
Vietnam |
Warranty |
Limited Warranty |
3 Year |
Specifications
- Mfr Part Number: SMART1500LCDT
- Output:
- Output Volt Amp Capacity: 1500VA
- Output kVA Capacity: 1.5kVA
- Output Watt Capacity: 900W
- Nominal Output Voltage Supported: 120V
- Frequency Compatibility: 50/60Hz (auto-selectable)
- Output Voltage Regulation (Line Mode): -10%, +6%
- Output Voltage Regulation (Battery Mode): +/- 5%
- Built-in UPS Output Receptacles: 10x 5-15R outlets
- Surge Suppression Only Outlets: 5x UPS outlets, 5x surge-only outlets
- Output AC Waveform (AC Mode): Sine wave
- Output AC Waveform (Battery Mode): PWM sine wave
- Input:
- Rated Input Current (at Maximum Load): 12A
- Nominal Input Voltage Supported: 120V AC
- UPS Input Connection Type: 5-15P
- Input Circuit Breaker: 20A
- UPS Input Cord Length: 6ft / 1.8m
- Recommended Electrical Service: 15A 120V
- Battery:
- Half Load Runtime: 10 minutes (450W)
- DC System Voltage: 24VDC
- Battery Recharge Rate (Included Batteries): Less than 8 hours from 10% to 90%
- Voltage Regulation:
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
- Overvoltage Correction: Input voltages between 129 and 147 are reduced by 15%
- Undervoltage Correction: Input voltages between 92 and 108 are boosted by 18%
- Leds Alarms & Switches:
- Front Panel LCD Display: LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing
- Alarms: Audible alarm indicates power-failure and low-battery conditions
- Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch
- Switches: Power switch offers whole UPS power control; additional scroll and select buttons enable LCD configuration and selection options
- Surge/Noise Suppression:
- UPS AC Suppression Joule Rating: 650
- UPS AC Suppression Response Time: Instantaneous
- UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
- EMI / RFI AC Noise Suppression: Yes
- Communications:
- Communications Interface: USB (HID enabled)
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
- Communications Cable: USB and DB9 Serial cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Line/Battery Transfer:
- Transfer Time: 2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
- Low Voltage Transfer to Battery Power (Setpoint): 92
- High Voltage Transfer to Battery Power (Setpoint): 150
- Special Features:
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- Green & High Efficiency Features: Greater than 95% efficiency - GREEN UPS
- Cooling Method: Fan
- Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
- Form Factor: Tower
- Dimensions (WxDxH): 5.75 x 15.40 x 8.00 inch / 14.6 x 39.1 x 20.3 cm
- Weight: 29.4 Ibs / 13.3 kg
