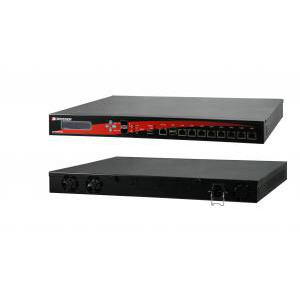

AR-R5800A is a rackmount networking platforms based on Intel Core 2 Quad / Duo cores processor. They feature a
1U rackmount chassis, maximum 4GB DDR3 memory, 8 x GbE and 2 x Fiber SFP LAN ports, 2 x LAN bypass, 4 x
USB ports, 2 x SATA HDD and console port.
| Chassis | |
| Dimensions (WxDxH) | 440mm x 372mm 44mm |
| System Fan | Fan |
| Chassis Construction | - |
| MotherBoard | |
| Processor Brand | - |
| Processor Type | - |
| Frequency | - |
| Cache Memory | - |
| Chipset | G41 + ICH7R |
| Memory Form Factor | SO-DIMM |
| Memory Included | No |
| Memory Max | 4 GB |
| Memory Type | DDR3 |
| Storage | |
| SATA | 2 |
| SD Card | - |
| Cfast | - |
| mSATA | - |
| Compact Flash | 1 |
| Remote Monitoring | |
| IPMI | - |
| I/O Interface | |
| Interface Type | Ethernet, USB, RS232, GPIO |
| PS2 (KB/MS) | - |
| USB 2.0 | 2 |
| USB 3.0 | - |
| Ethernet | 8 x RJ45 GBE LAN, x 2 Fiber |
| RS-232 | 1 x RJ45 |
| RS-422/485 | - |
| CAN-bus | - |
| Wireless | - |
| Cellular | - |
| Special Function Slot | - |
| Display Type | VGA |
| Resolution (VGA) | - |
| Resolution (DVI) | - |
| Resolution (HDMI) | - |
| Resolution (S-Video) | - |
| Digital I/O/Relay | - |
| GPIO | 4 x GPI, 4 x GPO |
| Audio | - |
| Expansions | |
| PCIe Mini | - |
| PCI | - |
| PCIe | - |
| PCI/104 | - |
| PCI/104 Plus | - |
| Power Input | |
| Power Input Type | Single AC / AC Jack |
| Operating Supply Voltage Range | 115V to 230V |
| Power Consumption | - |
| Reliability | |
| Mounting | - |
| Operating Temp. Min. | 0C to 4.99C |
| Operating Temp. Max. | 40C to 44.99C |
| Operating Vibration | - |
| Shock during Operating | - |
| Standards and Certifications | CE/FCC |
