BRAINBOXES

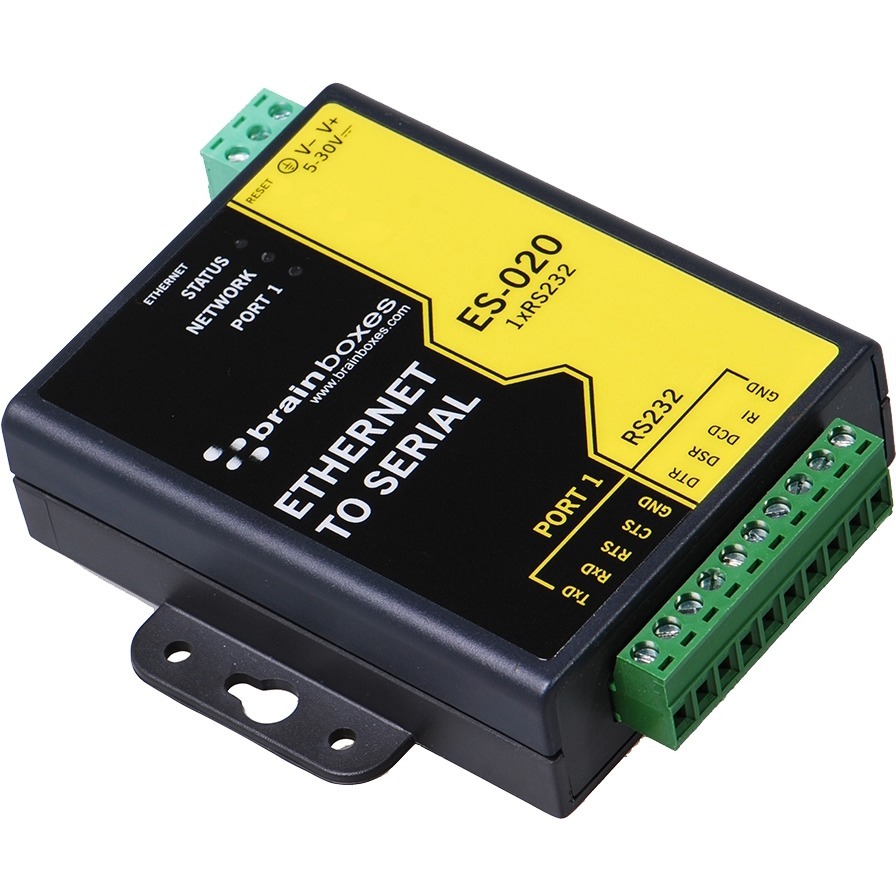

ES-020 Brainboxes Ethernet 1 Port RS232 10xScrew Terminals
Mfg Part Number: ES-020 , Item #: 1456298
, PO and Wire.
Ethernet 1 Port RS232 10xScrew Terminals Blocks perfect for industrial applications. Data transfer rates up to 1,000,000 Baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.
Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply .
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-020 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | ES-020 |
| Product Name | Ethernet 1 Port RS232 10xScrew Terminals |
| Product Type | Serial Adapter |
| Technical Information | |
| Platform Supported | PC |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 1 |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1" |
| Width | 3.9" |
| Depth | 4.6" |
| Weight (Approximate) | 4.16 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
