ALTRONIX
ALTRONIX AL600ULXPD16CB UL 12/24VDC 6A P/S W/2 PD8ULCB UL/CUL LISTED
Mfg Part Number: AL600ULXPD16CB , Item #: 1344846
Image may not reflect the actual item.
Price: $295.72
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 21, 2025
No Sales Tax except these states
, PO and Wire.

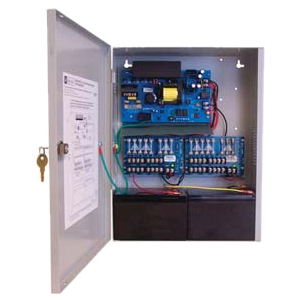

Model AL600ULXPD16CB power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via sixteen (16) PTC protected Class 2 Rated outputs. Model AL600ULXPD16 is a fuse protected version of this unit.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL600ULXPD16CB |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | AL600ULXPD16CB |
| Product Name | AL600ULXPD16CB Proprietary Power Supply |
| Packaged Quantity | 1 |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Thermal Overload |
| Protection Type | Short Circuit |
| Power Description | |
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Output Voltage | 12 V DC |
| Output Voltage | 24 V DC |
| Input Current | 1.9 A @ 110V |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 15.5" |
| Width | 12" |
| Depth | 4.5" |
| Weight (Approximate) | 10.30 lb |
| Miscellaneous | |
| Country of Origin | United States |
| NDAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
