- Manage two PCs and/or Macs with one set of console controls
- 2-port KVM switch with DVI, USB, and audio connections to computers and console devices
- Position the toggle switch in an ergonomic location on your work station
- All required cabling included
- 2 Year TRENDnet Manufacturer’s Warranty
- NDAA compliant

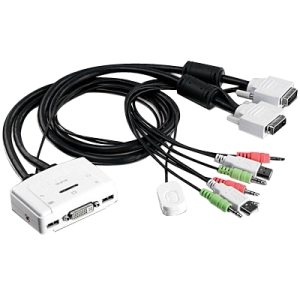

The 2-Port DVI USB KVM Switch Kit with Audio, model TK-214i, allows you to control 2 PC and/or Mac computers with one set of console controls. Manage laptops or desktops that have DVI, USB, and audio ports at the touch of a button with one set of USB keyboard, USB mouse, DVI monitor, microphone, and speakers. No driver installation required, simply plug in the devices to control 2 computers. A convenient toggle switch with a 1.5 m (5 ft.) extension cable can be placed in the most ergonomic location on your workstation.
View crystal clear Digital Video Interface (DVI) resolution at up to 1920 x 1200 pixels. Built in 0.9 m (3 ft.) combination cables include all the necessary USB, DVI, and audio connectors for each respective computer. This KVM switch does not need to be plugged into an outlet—it is powered by the connected computers. Download a Windows and Mac compatible utility to define Hot Keys, manage multiple audio ports, and create Auto Scan intervals.
Use one keyboard, monitor, and mouse to control two computers
Audio support for speakers and microphone
Console-side hardware
o 1 x DVI port
o 2 x USB 2.0 Type A port
o 1 x 3.5mm audio port
o 1 x 3.5mm microphone port
o LED display for easy computer monitoring
o Push button switch with a 1.45 m (4.8 ft.) extension cable
Computer-side hardware
o 2 sets of 80 cm (2.6 ft.) built-in combination cables with DVI, USB, audio, and microphone ports
Works with most standard USB mouse and keyboard designs
Support video quality of up to 1920 x 1200 resolution
Supports Windows, Linux, and Mac operating systems*
Hot-Plug feature: add computer or remove the connected computer for maintenance without powering down the KVM Switch
Keyboard status restored when switching between computers.
Install the included KVM switcher software in order to program Hot-Keys and Auto-Scan intervals
Plug and Play with no software download required
No power required, this device is powered by the computer’s USB port
2-year limited warranty
PACKAGE CONTENTS
TK-214i
Multi-Language Quick Installation Guide
CD-ROM (Utility and User’s Guide)
| General Information | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TK214I |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Model | TK-214i |
| Product Name | 2-port DVI Audio KVM Switch |
| Product Condition | New |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Number of USB Ports | 4 |
| Number of DVI Ports | 3 |
| Physical Characteristics | |
| Height | 3" |
| Width | 7" |
| Depth | 9" |
| Weight (Approximate) | 2.86 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
