CYBERPOWER

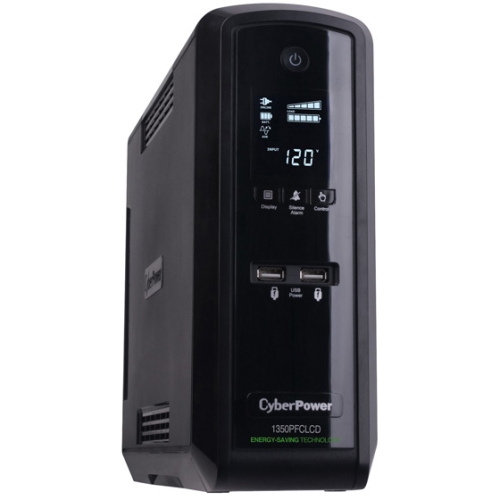

CyberPower CP1350PFCLCD UPS 1350VA 810W PFC compatible Pure sine wave
Mfg Part Number: CP1350PFCLCD , Item #: 1153656
, PO and Wire.
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP135PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.
The CP1350PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.
The CP1350PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1350PFCLCD comes with a three-year warranty (including coverage of batteries) and a $425,000 Connected Equipment Guarantee.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CP1350PFCLCD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | PFC Sinewave UPS |
| Product Model | CP1350PFCLCD |
| Product Name | PFC Sinewave CP1350PFCLCD 1350VA Mini-Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Cord Length | 5 ft |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage | Network Device |
| Application/Usage | Desktop Computer |
| Application/Usage | Workstation |
| Application/Usage | Home Entertainment System |
| Power Description | |
| Load Capacity (VA) | 1350 VA |
| Load Capacity (Watt) | 880 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 88 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1445 J |
| Circuit Breaker | Yes |
| Management | |
| Alarm | Low Battery |
| Alarm | Fault |
| Alarm | Battery Mode |
| Alarm | Overload |
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 11" |
| Width | 3.9" |
| Depth | 14" |
| Form Factor | Mini-tower |
| Weight (Approximate) | 22.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel® Personal |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
