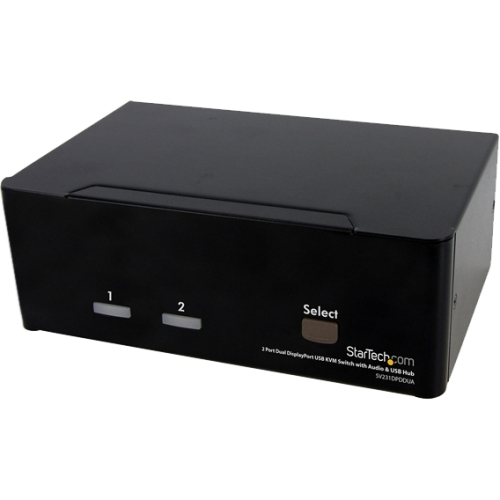

SV231DPDDUA StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
Mfg Part Number: SV231DPDDUA , Item #: 1134188
, PO and Wire.
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV231DPDDUA |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | SV231DPDDUA |
| Product Name | 2-port Dual Display DisplayPort KVM |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | WQUXGA |
| Maximum Video Resolution | 3840 x 2400 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 6 |
| Number of DisplayPorts | 6 |
| Power Description | |
| Input Voltage Range | 110V AC to 240V AC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.3" |
| Width | 6.3" |
| Depth | 3.9" |
| Weight (Approximate) | 1.62 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
