SYBA

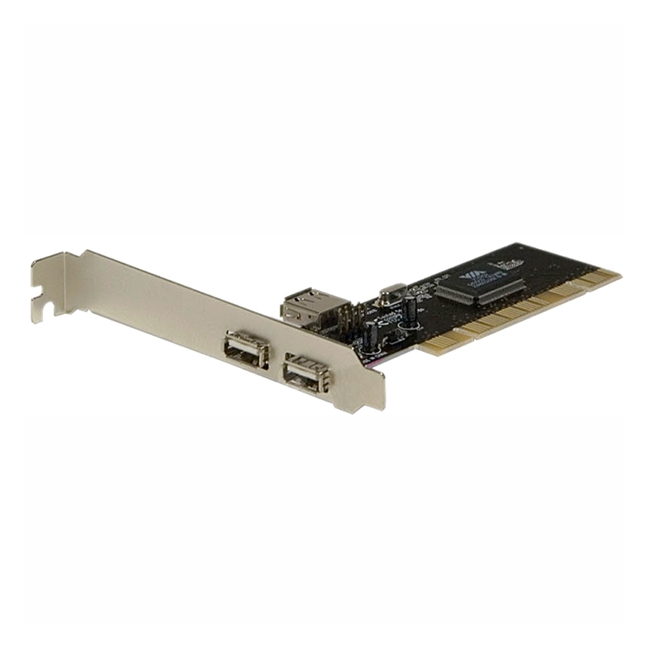

SYBA SD-VIA-2UH VIA VT6212, USB 2.0, 3x (2 Ext. + 1 Int.+ 1 Shared Header) Ports Card
Mfg Part Number: SD-VIA-2UH , Item #: 1131494
Image may not reflect the actual item.
Price: $21.44
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Dec 13, 2025
No Sales Tax except these states
, PO and Wire.
USB 2+1 Ports with Header (1x Internal Header or port) PCI Card
Main Specification
| General Information | |
| Manufacturer | SYBA Multimedia, Inc |
| Manufacturer Part Number | SD-VIA-2UH |
| Manufacturer Website Address | http://www.syba.com |
| Brand Name | SYBA Multimedia |
| Product Name | 3-port (2+1) 1 Header USB 2.0 PCI Card, VIA |
| Product Type | USB Adapter |
| Technical Information | |
| Host Interface | PCI |
| Media & Performance | |
| Data Transfer Rate | 480 MB/s |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 2.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Warranty | |
| Limited Warranty | 1 Year |
Using VIA (VT6202 / VT6212) PCI to USB 2.0 Host Controller chip
2x External Ports, 1x Internal Port (shared) - This Internal port can be a Header
Compliant with Universal Serial Bus Specification Revision 2.0
Compliant with Universal Host Controller Interface Specification for USB Rev 1.1
Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
32-bit 33MHz Host Interface compliant to PCI Specification release 2.2
Support PCI-Bus Power Management Interface Specification release 1.1
PCI bus-master access
PCI multi-function device consists of two UHCI Host Controller cores for Full-Speed / -- Low-Speed signaling and one EHCI Host Controller core for High-Speed signaling.
All downstream forcing ports can handle High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transaction
Full support of real time dynamic insertion and removal of devices
Supports all USB-compliant peripherals (e.g. keyboard, mouse, monitor, telephone, joystick, etc.)
2x External Ports, 1x Internal Port (shared) - This Internal port can be a Header
Compliant with Universal Serial Bus Specification Revision 2.0
Compliant with Universal Host Controller Interface Specification for USB Rev 1.1
Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
32-bit 33MHz Host Interface compliant to PCI Specification release 2.2
Support PCI-Bus Power Management Interface Specification release 1.1
PCI bus-master access
PCI multi-function device consists of two UHCI Host Controller cores for Full-Speed / -- Low-Speed signaling and one EHCI Host Controller core for High-Speed signaling.
All downstream forcing ports can handle High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transaction
Full support of real time dynamic insertion and removal of devices
Supports all USB-compliant peripherals (e.g. keyboard, mouse, monitor, telephone, joystick, etc.)
