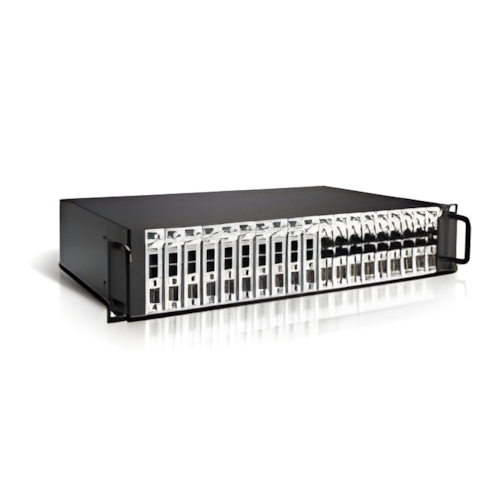

Moxa TRC-190-AC Serial Converter-Rackmount-Rackmount Chassis, AC input

MOXA Major Lines
Mfg Part Number:  TRC-190-AC
Image may not reflect the actual item.
Price: $850.61
Quantity:
In Stock: 4
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:

Check here for other accessories.

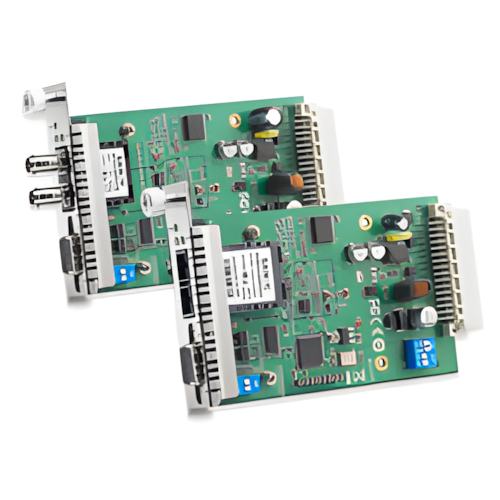

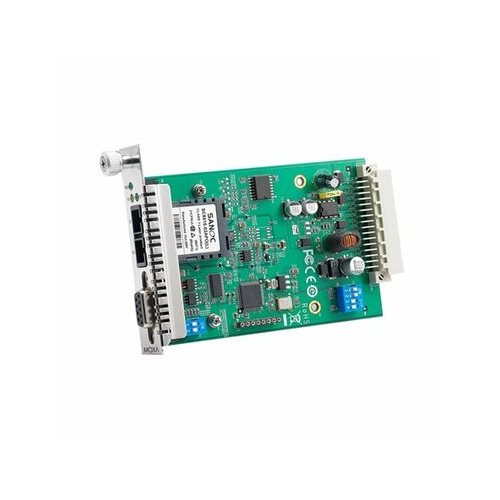

The TRC-190 series provides 19 slots for media converter modules such as the TCF-142-RM series. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-190 series' power input module supports the hot-swap feature.
  • 19-inch chassis for rackmount use
  • 19 slots for high density applications
  • Supports hot-swap and dual power input with redundancy
  • Fan-less design chassis for reducing repair time
Physical Characteristics
Housing SECC (1.2 mm)
Dimensions 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
Installation Number of Slots: 19 slots in the front for slide-in modules, 2 slots in the back for power supply modules
Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75°C (-4 to 158°F)
Power Requirements
Input Voltage Universal 100 to 240 VAC (47 to 63 Hz) or 48 VDC (36~70 VDC)
Power Consumption Max. Output: 5.4 A @ 12 V
Regulatory Approvals
EMI EN55022 2006, Class B
EMS EN61000-4-2 (ESD), Criteria A, Level 4
EN61000-4-3 (RS), Criteria A, Level 2
EN61000-4-4 (EFT), Criteria A, Level 3
EN61000-4-5 (Surge), Criteria A, Level 3
EN61000-4-6 (CS), Criteria A, Level 2
EN61000-4-8 (PFMF), Criteria A, Level 3
EN61000-4-11 (DIPS), Criteria A
CE Class A
FCC Part 15 sub part B Class A
Warranty
Warranty Period 5 years

Specification

Power Requirements
Power Consumption Max. Output: 5.4 A @ 12 V
Input Voltage Universal 100 to 240 VAC (47 to 63 Hz) or 36 to 72 VDC
Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
MTBF (mean time between failures)
Time 1,055,112 hrs
Database Telcordia (Bellcore), GB
Physical Characteristics
Weight 5.2 kg (11.4 lbs), with one power module installed
Dimensions 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
Number of Slots 19 slots in the front for slide-in modules, 2 slots in the back for power supply modules
Housing SECC (1.2 mm)
Standards and Certifications
EMI EN 55022 Class B, FCC Part 15 Subpart B Class A
Safety UL 60950-1, EN 60950-1
EMS EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3,
EN 61000-4-11 (DIPS)
EMC CE, FCC
Green Product RoHS, CRoHS, WEEE
Warranty
Warranty Period 5 years
Details See http://www.moxa.com/support/warranty.htm
